Features

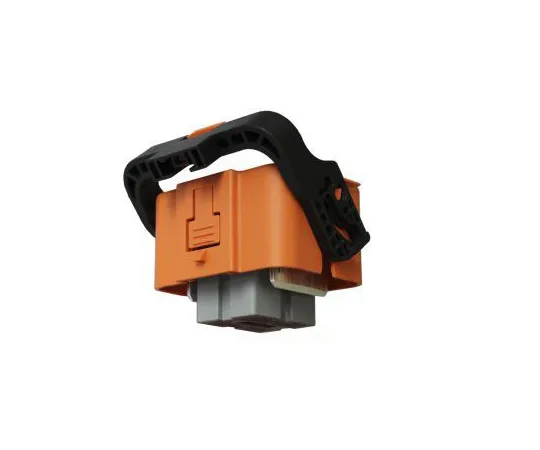

• Mini MSD Plug (with HVIL)
• This Mini MSD (Manual Service Disconnect) from Amphenol is for charging plug-in hybrid vehicles (PHEV) and is equipped with a high voltage interlocking loop (HVIL).　This plug has a two-step lever to open the HVIL circuit before separating the high-voltage contacts.　The MSD allows the internal high-voltage battery pack to be shut off without the need for special tools, while also protecting the battery from short circuits.　This mini MSD provides advanced intrusion protection and provides a safe and secure solution for PHEV services.　It is also a more compact and cost-effective alternative to the standard MSD.
• Features and Advantages: Durability over 50 insertions and removals Protection rating for biting: IP67, IP6K9K Operating temperature: -40°C → 70°C Standards: USCAR-2, USCAER-37, LV-215
