63-6892-37 Thick Chip Resistor 5025 Size 0.75 W 47 kΩ ± 1% RK73HW2HTTE4702F
Product Description
Product Model: 63-6892-37Product Brand: KOA Features AE […]
Contact Us
Product Details
Product Model: 63-6892-37
Product Brand: KOA
Features
- AEC-Q200 Certified 2010 Thick Chip Resistor, RK73H Series 1% KOA's RK73H Series Precision Resistor is a compact and lightweight solution. This precision resistor with a three-layer electrode structure has excellent reliability and high stability. The *** of metal glaze thick film provides excellent weather and heat resistance. This precision resistor is ideal for both flow and reflow soldering and is ***d in automatic mounting machines. All RK73H chip resistors except the 01005 case size are AEC-Q200 certified and suitable for automotive applications.
- Small, lightweight, stable and reliable lead-free terminal jumper resistor is also included.
Spec
- Quantity: 1 bag (50 pieces)
- Resistance: 47 kΩ
- Package/Case: 2010
- Tolerance: ± 1%
- Rating Power: 0.75 W
- Temperature Coefficient: ± 100 ppm/K
- Technology: Thick Film
- Dimensions : 5 x 2.5 x 0.6 mm
- Length: 5 mm
- Depth: 2.5 mm
- Height: 0.6 mm
- Series: RK 73 H
- Operating temperature Min: -55 °C
- Operating temperature Max: + 155 °C
- case styles: mold
- RoHS Compliance Status: Compliance
- Securities Code: 123 -4463
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4796-24 TE Connectivity Amplimite HD-20 Series, 37 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.75mm Pitch, with 5747847-4
model: 63-4796-24
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
63-4771-61 Han-Modular Series Male Module, 2 Way, 1 Row, Rated At 40A, 1 kV, Han 40A Axial 9140022601
model: 63-4771-61
brand: HARTING
Electronic/Electrical Parts and Controll Equipments
63-7690-05 DeWALT 100 mm T-Shank bimetal Jigsaw Blade Set, 70mm Cutting Length, 2.5mm Tooth Pitch DT2217R-GB
model: 63-7690-05
brand: DEWALT
Electronic/Electrical Parts and Controll Equipments

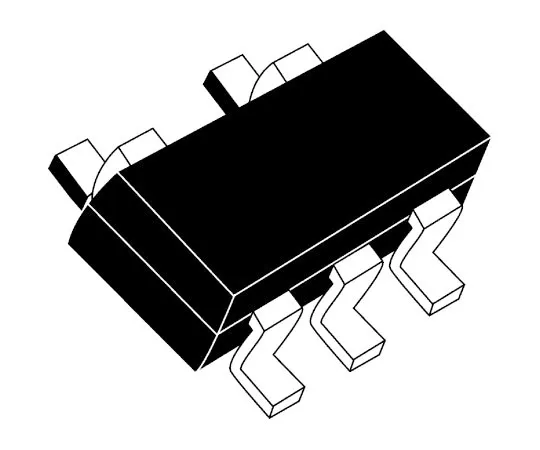

63-8114-08 DiodesZetex 74AHC1G08W5-7 2-Input AND Schmitt Trigger Logic Gate, 5-Pin SOT-25 74AHC1G08W5-7
