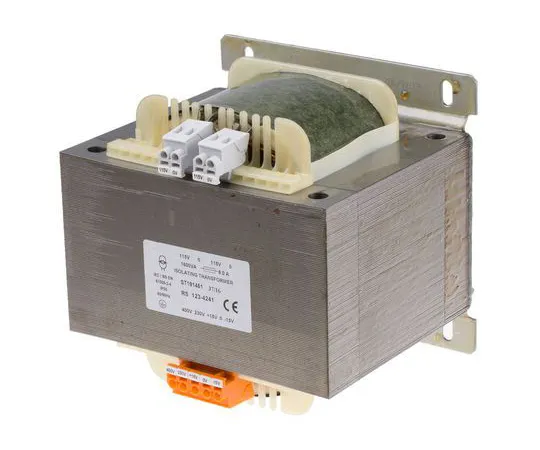

63-6891-53 RS PRO 1600VA Isolation Transformer, 15 V ac, 230 V ac, 400 V ac, 0 → 230 → 400 V ac Primary, 2 x 115V ac 123-4241
Product Description
Product Model: 63-6891-53Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6891-53
Product Brand: RS PRO
Features
- RS Pro Panel Insulated Transformer (Single Phase) • The RS Pro high-quality panel insulated transformer is designed for general ***. These single-phase transformers have threaded connectors for multiple inputs and brackets for screw fastening or DIN rails. Standard primary winding 0-230-400 V ac, adjustable +/- 15 V near 0, 100% electrical performance and flash tested.
- Features • High quality safety/insulation transformer Complete separation of primary and secondary windings Section 2 Bobbin Low noise laminate ground terminal included High efficiency varnish impregnation
Spec
- Primary Voltage Rating:15 V ac, 230 V ac, 400 V ac, 0 → 230 → 400 V ac
- Secondary Voltage Rating:2 x 115V ac
- Power Rating:1600VA
- Mounting Type:DIN Rail Mount, Screw Mount
- Length:174mm
- Width:169mm
- Depth:160mm
- Dimensions:174 x 169 x 160mm
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- Weight:21.1kg
- CODE No.:123-4241
