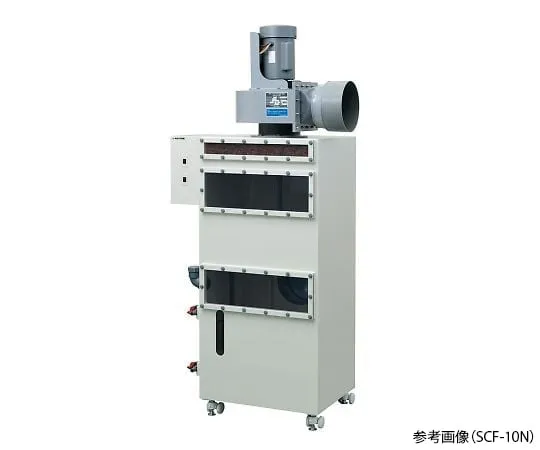

4-3314-03 Compact Scrubber (Wet Type with Acid Resistant Fan) with Inverter 650 x 727 x 1655 mm SCF-5NINV
Product Description
Product Model: 4-3314-03Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-3314-03
Product Brand: AS ONE Corporation
Features
- This is a small wet-type scrubber for the lab that comes with a chemical rocco fan for indoor installation.
- It includes a wet scrubber, fan and fan pump control panel.
- Suitable for treating water-soluble gases (Mainly acidic and alkaline gases) (water-insoluble gases can not be treated).
Spec
- External dimensions (mm): 650 x 727 x 1655
- Gas treatment airflow: 7 m3/min or less
- Number of pieces: 1
- Body Material: Rigid PVC (Vinyl Chloride Resin)
- Processing capacity: 7 m3/min or less
- Filling material: PP (polypropylene) Summit ring
- Power cord length: 2.8 m (grounded)
- Acid-resistant fan specification
- Exhaust connection IN: Rear PVC 150 A
- Exhaust connection OUT: Rear PVC 200 A
- Exhaust fan control: With inverter
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 2.8 m (with OA adapter)
- *Shipping, transportation, installation, and various connection works are required separately. Please inquire.
- *If the exhaust duct distance is long or the number of turns is high, the fan capacity may be insufficient.
- *Exhaust duct connection and water/drainage connection work are required separately to ***.
