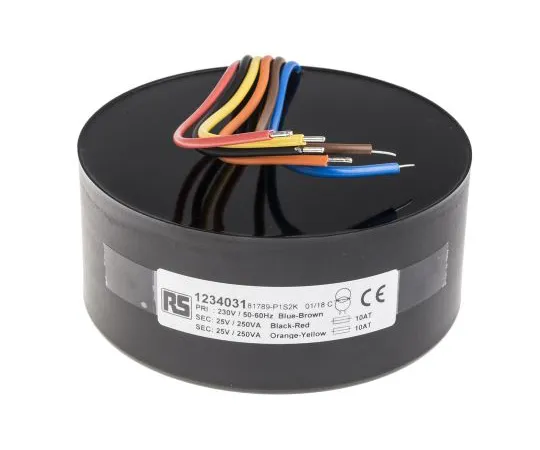

63-6889-87 RS PRO 230V ac, 2 x 25V ac Toroidal Transformer, 500VA 2 Output 123-4031
Product Description
Product Model: 63-6889-87Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6889-87
Product Brand: RS PRO
Features
- UL506 UL5085-1 EN61558-1 Class II EN60065 Class II RS Pro Sealed Transformer Single Primary Windings (15 → 500 VA) RS Pro High Quality Sealed Toroidal Transformer has 230 V ac (50/60 Hz) single primary windings. A pair of secondary windings can be connected in series or parallel or ***d alone. The center hole fixture makes it easy to install.
- Features: Fully sealed, UL94V-0 compliant Case material: Nylon 6.6 UL94V-0 compliant Small, light weight Very low induction noise (hum) Low iron loss Primary side lead double insulation Low surface temperature fixing bolt sold separately 100% Electrical performance test/flash test
Spec
- Primary Voltage Rating:230V ac
- Secondary Voltage Rating:2 x 25V ac
- Power Rating:500VA
- Number of Outputs:2
- Height:65mm
- Weight:3.5kg
- Diameter:148mm
- Dimensions:148 (Dia.) x 65mm
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- Mounting Type:Surface Mount
- Termination Type:Lead Wire
- CODE No.:123-4031
