Features

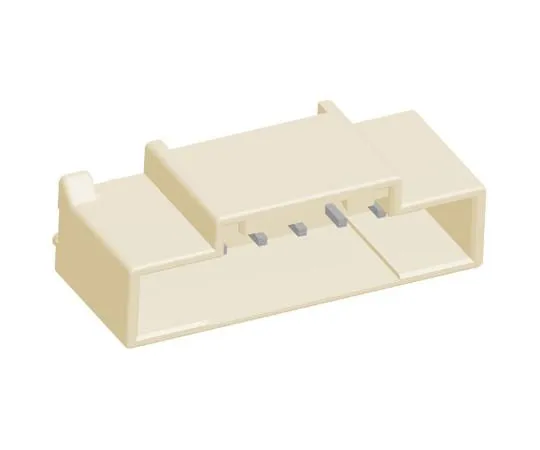

• TE Connectivity Grace Winers 2.5 Mark II Board Headers
• Grace Winers 2.5 Mark II Board Headers have a pitch spacing of 2.5 mm.　The Grace Inertia 2.5 mm Mark II board header is designed to prevent human error during assembly using the inertial locking mechanism employed in the housing.　The inertial locking mechanism simultaneously closes the circuit and locks the connector.　You can tell by the clicking sound when it is mixed.　The receptacle and header contacts do not come into contact with each other in the event of erroneous engagement.　This locking mechanism prevents the generation of defective products due to half-way caulking and provides a reliable and reliable connection.　The inertial locking mechanism prevents removal due to external forces while the connector is in use, enabling a reliable connection.　The Grace Inertia 2.5 Mark II board header features a compact, space-saving 2.5 mm pitch and is ergonomically designed for easy manual handling.　The new design of the 2.5 Mark II connector reduces contact insertion during assembly by up to 59%.　The polarity pegs and bosses of this Grace Einasha 2.5 Mark II board header allow for precise placement on the board. The part number X-1971798-X has 1.0 mm diameter pegs and the part number X-1971800-X has 1.5 mm diameter pegs.　The Grace Inertia 2.5 board header can be blinded by using 4 different color code key methods to prevent caulking.
• Features and benefits: Compact, space-saving design with a 2.5 mm pitch; ergonomic design for easy manual handling; reduces contact insertion force during assembly by up to 59%; inertial lock mechanism for accurate engagement and reliable, secure connection; color code key for easy identification and accurate engagement; positioning pegs for accurate attachment to substrate • Use: Grace Einasha 2.5 Mark II The substrate header is ideal for use with a wide range of large electrical products.　Applications include air conditioners, refrigerators, cooking utensils, microwaves, dishwashers, and industrial control boxes.
