Features

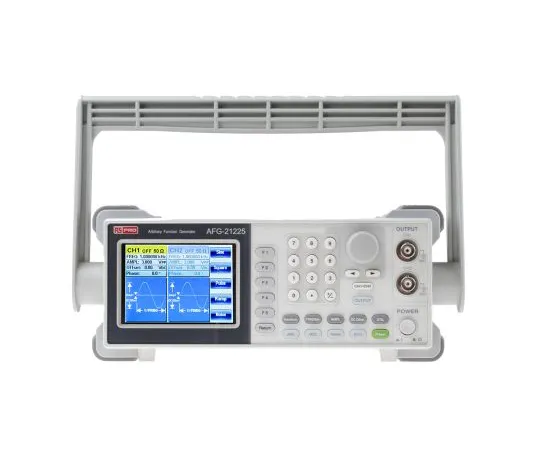

• Power Cord, Test Lead (x2), User Manual CD, Quick Start Guide • RS Pro AFG-21225 Full Dual Channel Arbitrary Waveform Function Generator • The RS Pro AFG-21225 is a base level dual channel arbitrary function generator with excellent features in this class.　It has two similar channels, making it suitable for dual signal applications such as differential or IQ modulation.　These channels can be ***d in indep***ent or correlated configurations (Couple, Tracking, Phase).　There are four ways to generate any customized waveform in AFG -21225: edit the waveform with PC software, edit it point by point in the panel, import a CSV file, and import the waveform captured from the ISO-TECH IDS Series Oscilloscope.　Beca*** the AFG-21225 has a 3.5 inch LCD, you can view operational information such as the full waveform formed by the output.　Easy to *** and cost-effective, the AFG-21225 provides a viable instrument choice and features to speed the development process.
• Features and benefits: Wide frequency range: 1 μHz → 25 MHz (sine wave) 1 μHz resolution (full range) Standard 120 MSa/s for both channels, 10 bit, 4000 point arbitrary function built-in Full dual channel output - CH2 has the same characteristics as CH1 Dual channel supports couple, tracking and phase operations Duty cycle can be adjusted from 1 to 99% for rectangular waveforms Easy to *** interface for parameter setting and parameter display Built-in standard AM/FM/PM/FSK/SUM/sweep/burst and frequency counter Equipped with USB host/device interface for remote control and waveform editing Application: Power/transformer simulation Conventional/motor Power supply experiment/trigger for educational research or pulse signal for synchronization On-board electronic component
