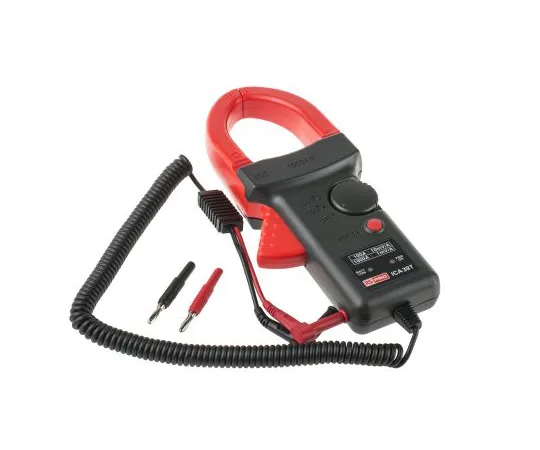

63-6888-19 RS PRO Multimeter Current Clamp Adapter, 1000A, 1000A ac, 51mm 123-3224
Product Description
Product Model: 63-6888-19Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6888-19
Product Brand: RS PRO
Features
- Battery (Filled), Coiled Cable Output Plug, Carrying Case, User Manual • RS Pro ICA39T Current Clamp Adapter • RS Pro brand ICA39T series clamp adapter.
- Features and benefits: 1.9% basic A dc/A ac accuracy Non-intrusive conversionConductor with a maximum diameter of 29 mmImpact resistance (can withstand a 5 foot drop) Coiled cable output plugergonomically designed joe and triggerCurrent capacity: 1000 A ac Automatic 0 key for DCARed LED - Low battery displayGreen LED - Power on displayInsulated input jack Standard 9 V battery safety standard: CAT IV 600 V/CAT III 1000 V Detection type: Hall effect
Spec
- Adapter Type:AC/DC
- Maximum DC Current:1000A
- Maximum AC Current:1000A ac
- Best Accuracy:±1.9% + 7 A
- Resolution:1 mV/A
- Maximum Conductor Size:51mm
- Safety Category:CAT III 1000 V
- Output Type:Current
- Connector Type:Test Lead
- Battery Type:9V Alkaline
- Battery Life:66 h
- Maximum Operating Temperature:+50°C
- Minimum Operating Temperature:0°C
- Safety Category Level:CAT III
- CODE No.:123-3224
