Features

• Optically Insulated USB Cable, PC Software (CD), Test Lead with Wire Clip, Software and User Manual, Alkaline Battery (2 Pieces)

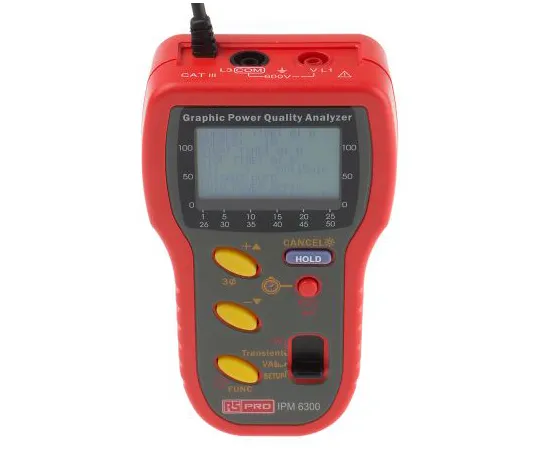

• RS Pro IPM6300 Flexible Power Characterizer
• RS Pro IPM6300 is a cost-effective 3 phase and single phase 3000 A graphical power characterizer with data recording capabilities. It is designed for the analysis and diagnosis of power characteristics and power disturbance problems of electrical equipment and power supply circuits. Optically insulated USB cables and analysis software enable readings to be displayed on a PC or laptop or downloaded for analysis.
• Features and Advantages: Power characteristics analysis of single and 3 phase systemsGraphic display of voltage and current waveformsActive power measurement (W, kW, HP) Reactive power measurement (VAR, kVAR) Apparent power measurement (VA, kVA) Power factor (PF) and phase angle (O) MeasurementsEnergy calculation (WH and kWH) Transient detection of rise, fall, and stopGraphic analysis of harmonics up to 50 degrees in% and magnitude (V and A)% THD analysisGraphic display of phase diagram, quick display of peaksMaximum demand measurement during period (duration can be preset) 128 x 64 dot matrix LCD, backlit real time clock For ultra-high power measurement, CT ratio can be programmed in the range of 1~3000 Data recording of up to 50,000 readings/32000 transient events in internal memory, interval to be recorded Programmable recording interval in the range of 1 to 3000 seconds
