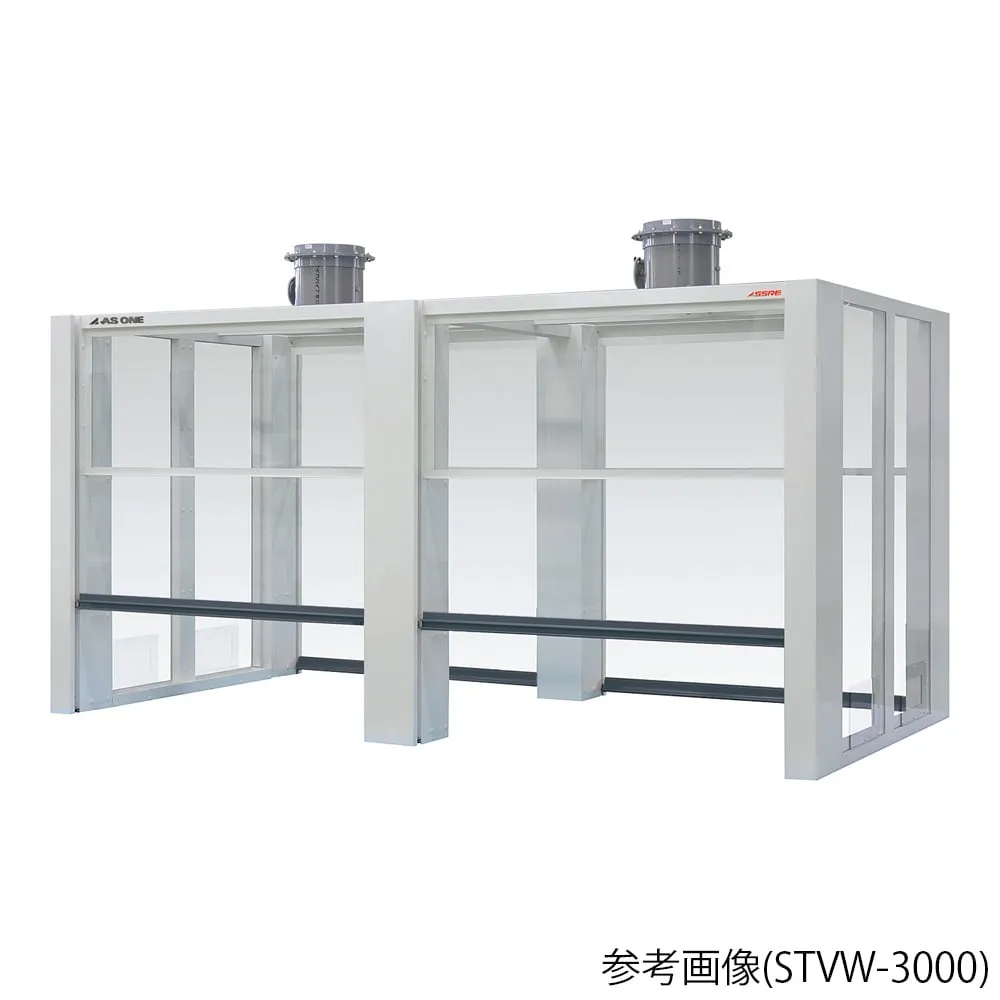

4-1191-01 Steel Laboratory bench hood (Double-sided balance sash type) STVW-1800
Product Description
Product Model: 4-1191-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-1191-01
Product Brand: AS ONE Corporation
Features
- This is a simple laboratory hood for cost performance.
- Balance weight type door for excellent workability.
- The transparent surroundings allow for a wide field of view and easy observation inside the hood.
- The side panel has an access panel for easy passage of piping and wiring.
Spec
- external dimension (mm): 1800 x 1500 x 1500
- Front doors: 1
- air volume (m3/min): 23
- 1 port (Φ mm): 250
- Required duct diameter (Φ mm): 250
- Weight (About kg): 265
- Frame: Steel (polyester powder coating)
- Front & Back: Transparent tempered glass (5 mm Atsushi)
- balance weight formula
- Side and ceiling: transparent Hard PVC (5 mm Atsushi) with access panel for fixed window piping and wiring
- Exhaust Duct: Hard PVC (Plastic vinyl chloride ) with Volume Damper
- *air volume is the recomm***ed value when the controlled wind velocity at half-open of the front door (1 or 2 pieces) is 0.5 m/s.
