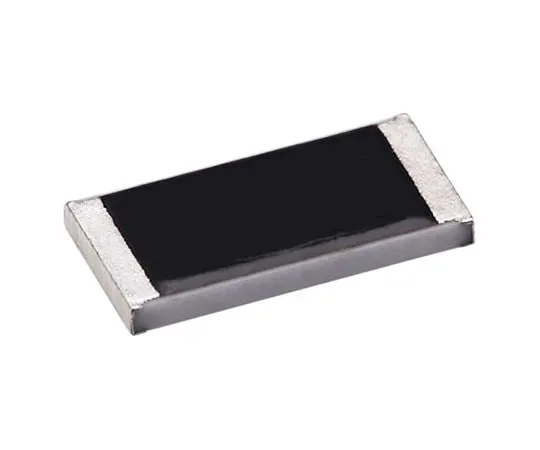

63-6877-47 Thin-film Chip Resistor 2012 size 0.1 W 316 ohm +/- 0.1% CPF0805B316RE1
model:
63-6877-47
brand:
TE Connectivity
Product Description
Product Model: 63-6877-47Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6877-47
Product Brand: TE Connectivity
Features
- 0805 TE Connectivity CPF Series Precision Resistors 300 Ω → 1.58 kΩ
- TE Connectivity CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistive layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement. CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C.
- Features • Product application information • Accurate dimensions • High stability • High precision • Various resistance values for all applications • Temperature range: -55 → +155 °C • Suitable applications for CPF precision resistors include communications, industrial control, instrumentation, and medical applications.
Spec
- Quantity: 1 bag (20 pieces)
- Resistance: 316 ohms
- Package/Case: 0805
- Tolerance: +/- 0.1%
- Rated power: 0.1 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 2 x 1.25 x 0.55 mm
- Length: 2mm
- Depth: 1.25 mm
- Height: 0.55 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 123 -1368
