63-6876-18 Insulation DC-DC Converter Vout: 12 V dc 9 to 36 V dc 10 W 24 V dc JWK1024S12
Product Description
Product Model: 63-6876-18Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6876-18
Product Brand: XP Power
Features

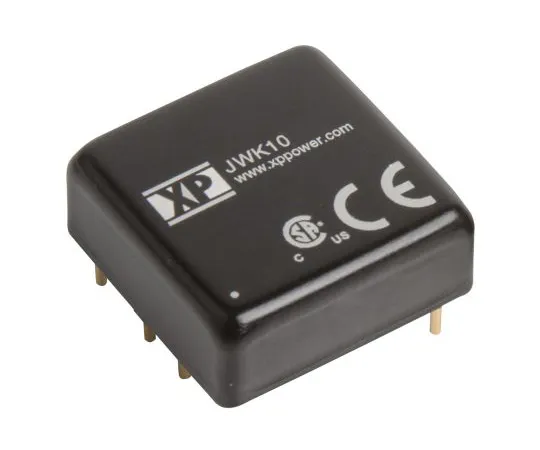

- XP Power-JWK10 Series Insulated DC-DC Converter
- The XP Power JWK10 series is a reliable and stable single/dual output, 10 W insulated DC-DC converter. This series of products is designed to fit in a small 1 x 1 inch package, has a 1500 V ac breakdown voltage, and meets all ITE safety approvals. These compact DC-DC converters also have a 4:1 input range, remote on/off settings, and a wide operating temperature range of -40 to +100 °C.
- 10 W Insulated DC-DC Converter Stable Single/Dual Output Small 1 x 1 inch Package 4:1 Wide Input Range of 1500 V dc Insulation Voltage ITE Safety Approved Remote On/Off Settings
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1500 V dc @ 60 s, 1800 V dc @ 1 s
- Rating Power: 10 W
- Output current: 125 to 830 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 86%
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Width: 25.4 mm
- RoHS compliance status: Compliance
- Securities Code: 123 -1239
