Electronic/Electrical Parts and Controll Equipments
63-6876-04 Insulation DC-DC Converter Vout: 5 V dc 9 to 36 V dc 30 W 24 V dc JTK3024S05
Product Description
Product Model: 63-6876-04Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6876-04
Product Brand: XP Power
Features

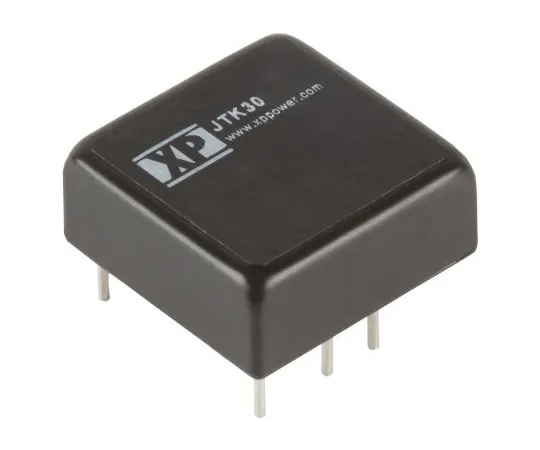

- XP Power-JTK30 Series Insulated DC-DC Converter
- The XP Power JTK30 series is a reliable single/dual output, 30 W insulated DC-DC converter. Ho***d in a small 1 x 1 inch package, it has a 1600 V dc breakdown voltage and high efficiency of up to 91%. These compact DC-DC converters have a remote on/off function and a wide operating temperature range of -40 to +100 °C.
- 30 W Insulated DC-DC Converter High Efficiency Up to 91% Single and Dual Output 1600 V dc Insulation Voltage Remote On/Off Setting Wide Operating Temperature Range: -40 → +100 °C
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Output voltage regulation range: ± 10 (Minimum)%
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1600 (Minimum) V dc
- Rating Power: 30 W
- Output Current: 6 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 89%
- Load regulation: Maximum of 0.5%
- Maximum temperature: + 100 degrees C
- Series: JTK 30
- RoHS compliance status: Compliance
- Securities Code: 123 -1224
