63-6875-69 Insulation DC-DC Converter Vout: 5 V dc 18 to 36 V dc 10 W 24 V dc JSM1024S05
Product Description
Product Model: 63-6875-69Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6875-69
Product Brand: XP Power
Features

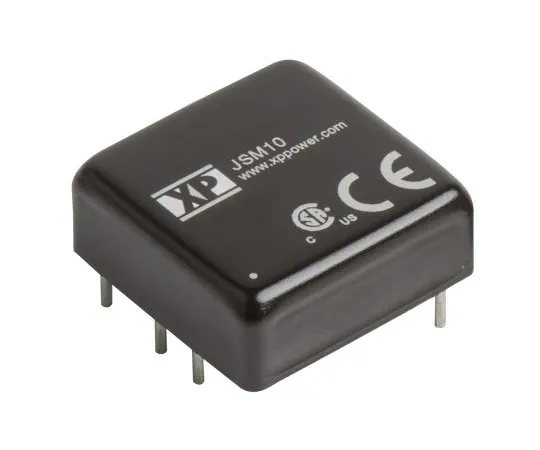

- XP Power-JSM10 Series Insulated DC-DC Converter
- The JSM10 series from XP Power is a reliable and stable single/dual output, 10 W insulated DC-DC converter. This series of products is designed to fit in a small 1 x 1 inch package, has a 1500 V ac breakdown voltage, and meets all ITE safety approvals. These compact DC-DC converters also have a 2:1 input range and a wide operating temperature range of -40 to +100 °C.
- 10 W Insulated DC-DC Converter 2:1 Input Range Stable Single/Dual Output Small 1 x 1 inch Package 1500 V dc Insulation Voltage ITE Safety Approved Wide Operating Temperature Range: -40 → +100 °C
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1500 V dc @ 60 s, 1800 V dc @ 1 s
- Rating Power: 10 W
- Output Current: 2A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 85%
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: JSM 10
- RoHS compliance status: Compliance
- Securities Code: 123 -1190
