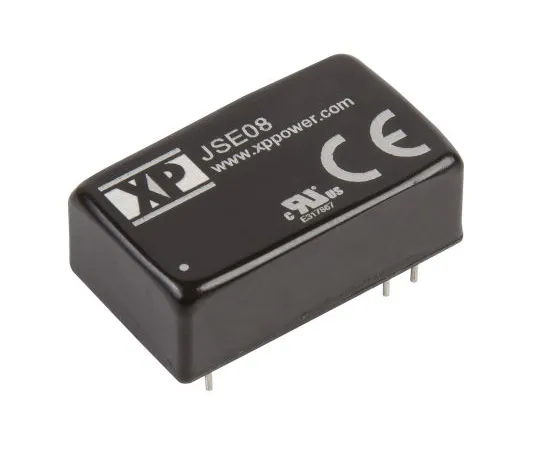

63-6875-39 Insulation DC-DC Converter Vout: 3.3 V dc 9 to 18 V dc 8 W 12 V dc JSE0812S3V3
Product Description
Product Model: 63-6875-39Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6875-39
Product Brand: XP Power
Features
- XP Power-JSE08 Series Insulated DC-DC Converter
- The JSE08 series from XP Power is a reliable and stable single/dual output, 8W insulated DC-DC converter. This series of products is designed to be packaged in a DIP16 package, has a 2:1 input range, and complies with all ITE safety approvals. These compact DC-DC converters also have a high power density, a breakdown voltage of 1500 V dc, and a wide operating temperature range of -40 to +105 °C.
- 8 W Insulated DC-DC Converter 2:1 Input Range Stable Single/Dual Output DIP16 Package 1500 V dc Insulation Voltage ITE Safety Approved Wide Operating Temperature Range: -40 → +105 °C
Spec
- Quantity: 1 piece
- Output Voltage: 3.3 V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- Rating Power: 8W
- Output Current: 1.6 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 78%
- Package: DIP 16
- Road regulation: ± 1%
- Maximum temperature: + 105 degrees C
- Series: JSE08
- RoHS compliance status: Compliance
- Securities Code: 123 -1160
