Electronic/Electrical Parts and Controll Equipments

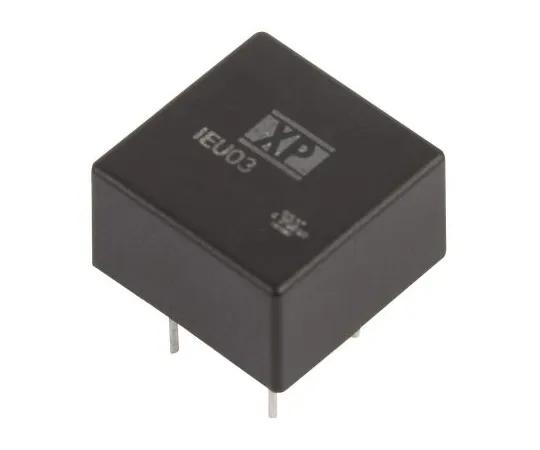

63-6875-14 Insulation DC-DC Converter Vout: ± 12 V dc 18 to 36 V dc 3 W 24 V dc IEU0324D12
Product Description
Product Model: 63-6875-14Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6875-14
Product Brand: XP Power
Features
- XP Power-IEU Series DC-DC Converters
- The IEU series of XP Power is a reliable single/dual output insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP or DIP packages. All of these compact DC-DC converters operate at a higher temperature and are available in smaller package sizes.
- 1 W insulated DC-DC converter with 1000 V dc breakdown voltage, 3000 V dc option Single output Operating temperature range: -40 → +85 °C Industry standard SIP/DIP Packaging Maximum efficiency: 80% Small package available
Spec
- Quantity: 1 piece
- Output Voltage: ± 12 V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 3W
- Output current: ± 125 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 86%
- Package: DIP8
- Minimum temperature: -40 degrees C
- Maximum temperature: + 95 degrees C
- Series: IEU03
- RoHS compliance status: Compliance
- Securities Code: 123 -1135
