Electronic/Electrical Parts and Controll Equipments
63-6874-61 Round Connectors M12 Series Contact Contacts: Male, 3-Pole Female 21032411301
Product Description
Product Model: 63-6874-61Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-6874-61
Product Brand: HARTING
Features

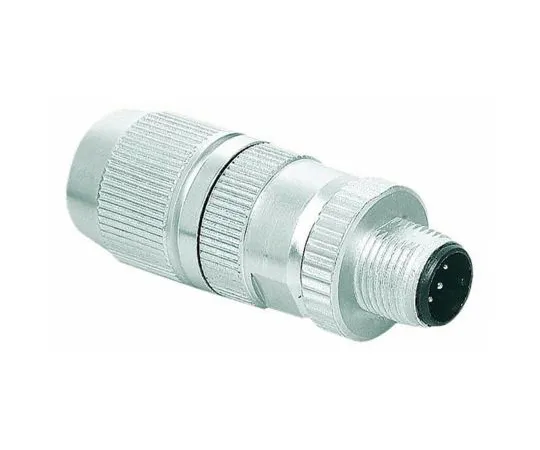

- HARAXR M12 L Straight Round Connector
- HARAXR Quick Connection Universal technology is the best solution for waterproof assembly of M12 connectors and does not require special tools.
- IP65/67 Protective Termination Cycle 10 (Same Cross-Sectional Area) Cable Diameter: 3 Poles 5.5 → 7.2 mm, 4 Poles 6 → 8 mm, 5 Poles 6 → 8 mm Conductor Diameter: 3/4 Poles 1.6 → 2.0 mm (22 -18 AWG), 5 Poles 1.2 → 2.0 mm (24 -20 AWG) Part Number; 707-3692 707-3692 is a contact with a lead wire
Spec
- Quantity: 1 piece
- Number of contacts: 3
- Plug/Socket: Plug
- Connector Size: M12
- Terminal method: IDC
- Rated current: 4A
- IP Protection grade: IP 65, IP 67
- Contact G***er: Male
- Rated voltage: 32 volts
- Join Type: Quick Connect
- Body orientation: Straight
- Series: M12
- Housing material: Polyamide
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 123 -1083
