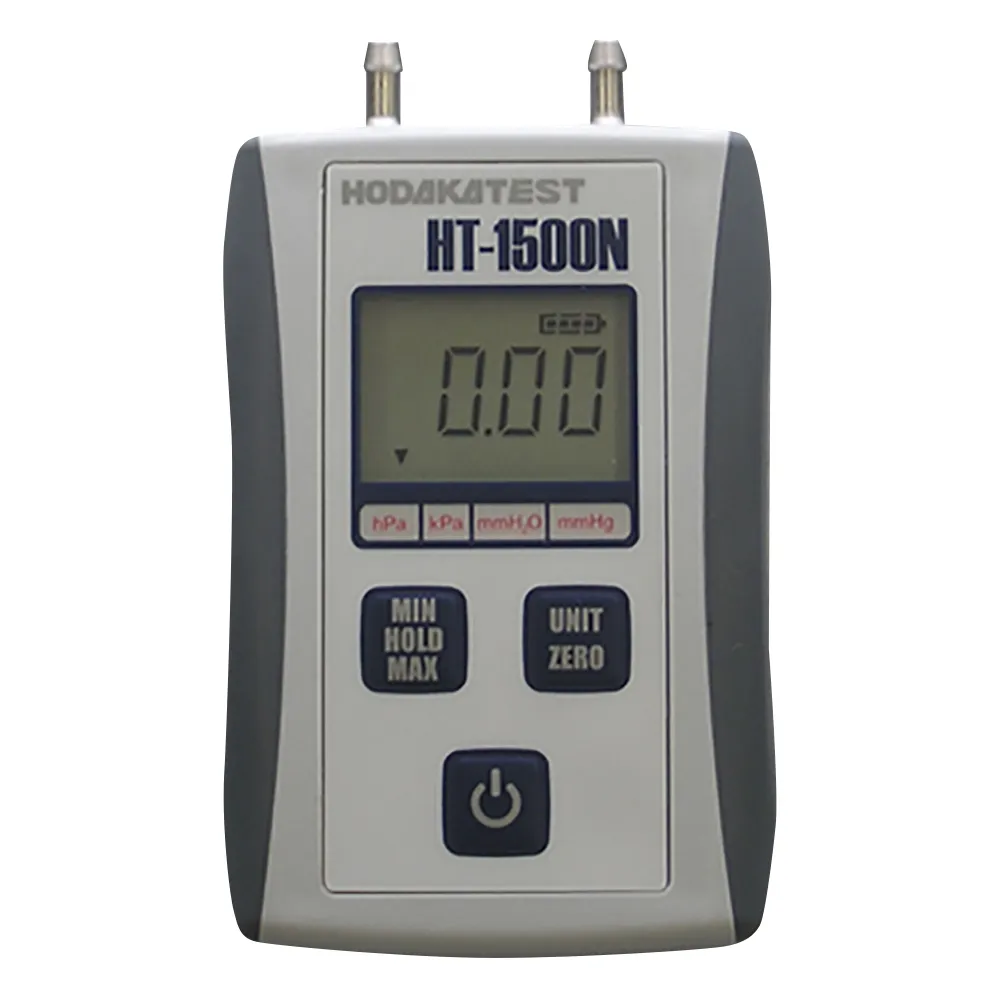

1-1824-01 Compact Digital Manometer HT-1500NL
model:
1-1824-01
category:
toner
Product Description
Product Model: 1-1824-01 Features It is small and light […]
Contact Us
Product Details
Product Model: 1-1824-01
Features
- It is small and lightweight and fits in the palm of your hand.
- Positive pressure, negative pressure and differential pressure can be measured.
- Four units can be switched.
- Can be fixed to the wall surface by the back magnet.
- A traceability and calibration certificate can be issued.
Spec
- Model number: HT-1500NL
- Measurement range: -29.9 to +29.9hPA
- Resolution: 0.01hPa (-19.99 to +19.99hPa), 0.1hPa (Others)
- Accuracy: FS +/-1%
- Maximum allowable error: 100hPa
- Display: hPa, kPa, mmH2O, mmHg
- Sensor: Piezo resistance type semiconductor sensor
- Function: Hold, maximum/minimum value, auto-off
- Connection port: Hose joint φ4mm
- Power supply: AA alkaline dry cell x 2 pieces (included)
- Size: 64 x 28 x 95mm (excluding projections)
- Weight: 145g
- *Please *** the hose with withstand pressure of over maximum allowable pressure.
- Accessories: Different diameter connector (4 - 7 <=> 7 - 11mm) x 2 pieces, Hose (inner diameter φ3mm x 1m) x 2 pieces
