63-6869-39 Thin-film Chip Resistor 1608 size 0.063 W 681 ohm +/- 0.1% CPF0603B681RE1
model:
63-6869-39
brand:
TE Connectivity
Product Description
Product Model: 63-6869-39Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6869-39
Product Brand: TE Connectivity
Features
- TE Connectivity CPF Series 0603 Precision Resistors (300 → 976)
- TE Connectivity CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C. CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistance layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement.
- Features • Temperature range: -55 → +155 °C High stability High precision Accurate dimensions Various resistance values are available to suit all applications • Product application information • Suitable applications for CPF precision resistors include industrial control, communications, instrumentation, and medical applications.
Spec
- Quantity: 1 bag (20 pieces)
- Resistance: 681 ohms
- Package/Case: 0603
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 1.6 x 0.8 x 0.45 mm
- Length: 1.6 mm
- Depth: 0.8 mm
- Height: 0.45 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 122 -9594
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-8049-39 RS PRO 4 wire PT100 Sensor, -50°C min +150°C max, 125mm Probe Length x 6mm Probe Diameter 872-2767
model: 63-8049-39
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-4892-07 Arcol HS50 Series Aluminium Ho***d Axial Wire Wound Panel Mount Resistor, 30Ω ±5% 50W HS50 30R J
model: 63-4892-07
brand: Arcol
Electronic/Electrical Parts and Controll Equipments
63-7008-03 RS PRO 10mm Stud Mount M6 20mm Diameter 35.64kg Compression Load, Male to Female Natural Rubber 126-4294
model: 63-7008-03
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

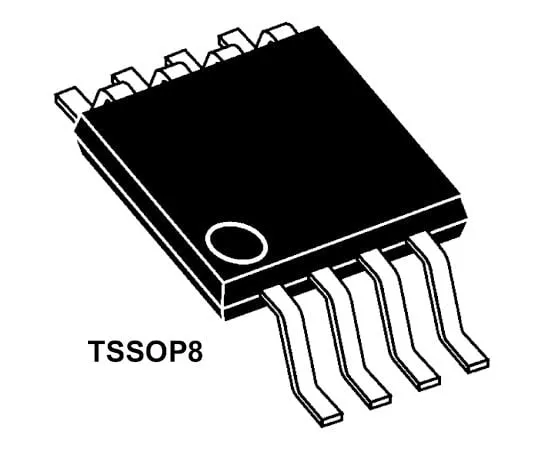

63-8097-16 Microchip 24LC512-I/ST, 512kbit Serial EEPROM Memory 8-Pin TSSOP I2C 24LC512-I/ST
