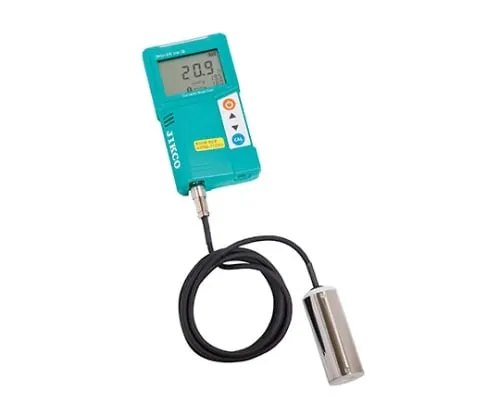

1-1545-38-20 Oxygen monitor (quick response type) with sensor separation and portable calibration certificate JKO-25LD3-K
Product Description
Product Model: 1-1545-38-20Product Brand: ICHINEN JIKCO […]
Contact Us
Product Details
Product Model: 1-1545-38-20
Product Brand: ICHINEN JIKCO Ltd.
Features
- It is a large LCD display with easy viewing.
- The alarm concentration can be set arbitrarily.
- Calibration can be performed at any concentration appropriate to the measured concentration, or at one-touch with normal air (20.9%O2).
Spec
- proof of calibration
- Sensor specifications: Separate and portable
- Power Type: External Power
- Number entered: 1
- Detection principle: Galvani battery type (diffusion type)
- Resolution: 0.1%
- Accuracy: +/- 0.5% (0 ~ 25%)/+/- 3.0% (25% or more)
- Measuring range: 0 ~ 100%
- Response time: Within 15 seconds
- Size: Body/82 x 38 x 145 mm
- Alarm: Electronic buzzer and red LED
- External output: alarm output/analog output (0 ~ 1 V FS)
- Power supply: 4 AA alkaline batteries (included for testing)
- Weight: 315 g
- Lead wire length: 3 m
- *"With proof of calibration" includes the instrument certificate and proof gas certificate at the time of shipment.
- *"With Proof of Calibration" is an original certificate service of Azwan.
