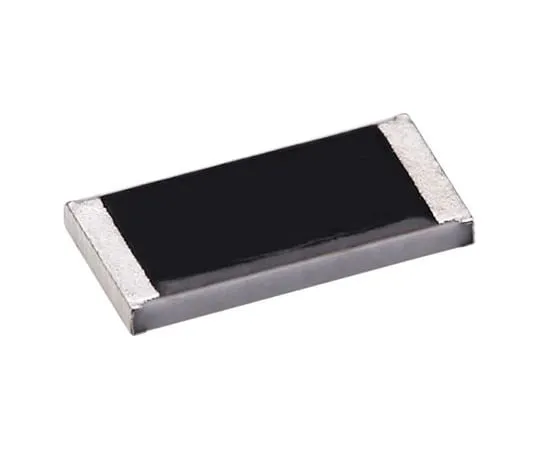

63-6866-20 Thin-film Chip Resistor 1608 size 0.063 W 15.4 kohm +/- 0.1% CPF0603B15K4E1
model:
63-6866-20
brand:
TE Connectivity
Product Description
Product Model: 63-6866-20Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6866-20
Product Brand: TE Connectivity
Features
- TE Connectivity CPF Series 0603 Precision Resistors (15 → 54.9 k)
- TE Connectivity CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C. CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistance layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement.
- Features and Advantages: Temperature Range: -55 → +155 °C High stability High precision Accurate dimensions Various resistance values to suit all applications Applications:
- Suitable applications for CPF precision resistors include industrial control, communications, instrumentation, and medical applications.
Spec
- Quantity: 1 bag (20 pieces)
- Resistance: 15.4 kohms
- Package/Case: 0603
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 1.6 x 0.8 x 0.45 mm
- Length: 1.6 mm
- Depth: 0.8 mm
- Height: 0.45 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 122 -9009
