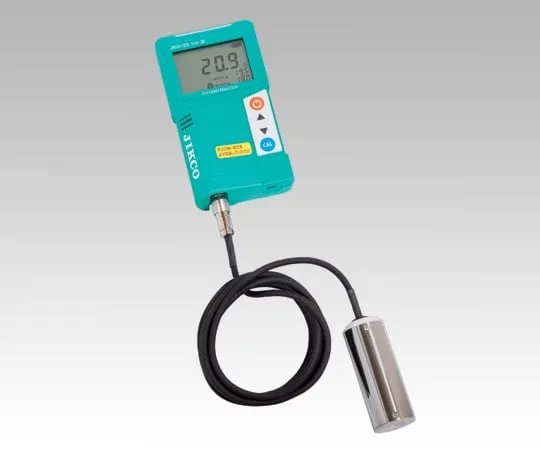

1-1545-32-20　Oxygen monitor (quick response type) with sensor separation and portable calibration certificate　JKO-25L3-K
toner

1-1545-32-20　Oxygen monitor (quick response type) with sensor separation and portable calibration certificate　JKO-25L3-K

model: 1-1545-32-20
brand: ICHINEN JIKCO Ltd.
category: toner

Product Description

Product Model: 1-1545-32-20Product Brand: ICHINEN JIKCO […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 1-1545-32-20
Product Brand: ICHINEN JIKCO Ltd.

Features

  • It is a large LCD display with easy viewing.
  • The alarm concentration can be set arbitrarily.
  • Calibration can be performed at any concentration appropriate to the measured concentration, or at one-touch with normal air (20.9%O2).

Spec

  • proof of calibration
  • Sensor specifications: Separate and portable
  • Power Type: AA Alkaline Battery
  • Number entered: 1
  • Detection principle: Galvani battery type (diffusion type)
  • Resolution: 0.1%
  • Accuracy: +/- 0.5% (0 ~ 25%)/+/- 3.0% (25% or more)
  • Measuring range: 0 ~ 100%
  • Response time: Within 15 seconds
  • Size: Body/82 x 38 x 145 mm
  • Alarm: Electronic buzzer and red LED
  • External output: alarm output/analog output (0 ~ 1 V FS)
  • Power supply: 4 AA alkaline batteries (included for testing)
  • Weight: 315 g
  • Lead wire length: 3 m
  • *"With proof of calibration" includes the instrument certificate and proof gas certificate at the time of shipment.
  • *"With Proof of Calibration" is an original certificate service of Azwan.
