Electronic/Electrical Parts and Controll Equipments
63-6865-70 RS PRO Aluminium Enclosure, IP66, 160 x 100 x 81mm ATEX, IECEx 122-8934
Product Description
Product Model: 63-6865-70Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6865-70
Product Brand: RS PRO
Features
- Mechanical Strength: 60079-0 Compliance, Impact Energy: 7 Nm Protection Class: EN60529, IP66 Compliance Standards: IEC/EN60079-0, IEC/EN60079-7, IEC/EN60079-31 Process Control System: ISO9001:2008, IEC80079-34:2011
- 11 2 G Ex e IIC Gb 11 2 G Ex tb IIIC Db IP66 DEMKO 12 ATEX 1327771U IECEx UL 13.0042U ATEX IECEx cULus CE RoHS GOST-R

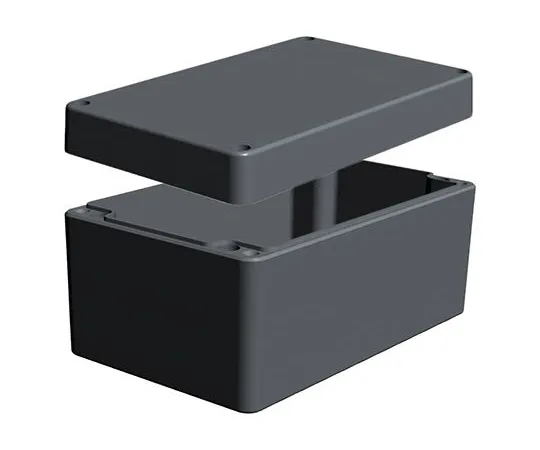

- RS Pro Die Cast Aluminum Enclosure
- This die cast aluminum enclosure has a gray powder coating finish and is ATEX and IECEx certified. This makes it suitable for *** in explosive atmospheres. The IK09/IP66 rating makes it suitable for *** in a variety of applications, including process control, automation, and mining. Ideal for locomotives, hoist cranes, solar panels, load cells, oil meters and high torque brakes.
- Features and Benefits: AISi 12 Aluminum Gray Powder Coated Finish Stainless Steel Captive Lid Screw Working Temperature: -50 → 135 °C Internal/External Grounding: 4 mm ^2 → 120 mm ^2 (Internal and External)
- Frequently Asked Questions:
- What is the IP rating?
- The IP rating is ***d to define the degree of sealing of an electrical enclosure against the ingress of foreign objects (such as tools and dirt) and moisture. For more information, see the SOLUTIONS section at the top of the page or click "Selection Guide of an Enclosures."
- What is the meaning of ATEX? The ATEX Directive consists of two EU Directives that describe equipment and work areas that can be ***d in explosive environments.
- What is the content of the product? Enclosure body + cover x 4 cover screws
Spec
- Body Material:Aluminium
- External Length:160 mm
- External Height:81 mm
- External Width:100 mm
- External Dimensions:160 x 100 x 81mm
- IP Rating:IP66
- Lid Colour:Grey
- Flanged:No
- Shielded:No
- Series:RJ
- Hazardous Area Certification:ATEX, IECEx
- Gasket Material:Silicone
- CODE No.:122-8934
