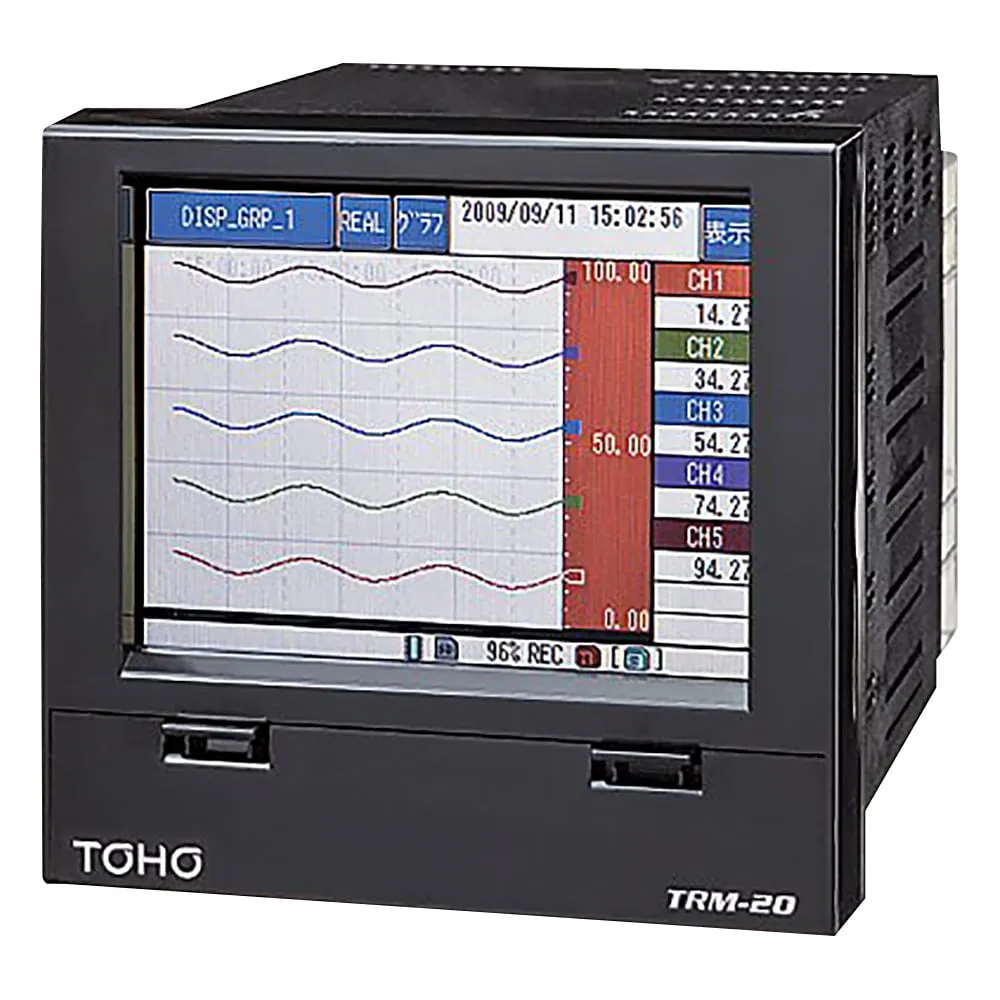

1-1456-01 Paperless Recorder (6 Depressor Bar Type Dash Recorder) TRM2006A000T-Z
model:
1-1456-01
category:
toner
Product Description
Product Model: 1-1456-01 Features LCD touch panel for e […]
Contact Us
Product Details
Product Model: 1-1456-01
Features
- LCD touch panel for easy operation.
- Calculated recording of F value (lethal value of bacteria by heat sterilization) is possible.
- A parameter loader via a memory card and a data viewer (included software) that can be viewed and analyzed are possible.
Spec
- Model number: TRM2006A000T-Z
- 6 depressor bar type dash recorder
- Input type: Thermocouple, resistance thermometer, DC voltage, DC current 4 - 20mA
- Measurement period: 100ms
- Indication accuracy: ±0.1% ±1 digit
- Display: 5.7 inch TFT color LCD
- Internal memory: Approximately 100MB
- Recording medium: SD card (maximum 2GB), SDHC card (maximum 32GB)
- Alarm: 4 channel each
- Size: 150.0 x 207.8 x 144.0mm (including terminal block cover)
- Power supply: AC85 - 264V, 50/60Hz
- Power cord: Approximately 2m (3P plug)
- Weight: Approx 1kg
- Waterproof, dustproof: IP65 (front)
- Accessories: Panel mounting bracket, Front waterproof panel packing, Software (CD-ROM)
- RoHS3 (EU)2015/863 Certificates can be issued
