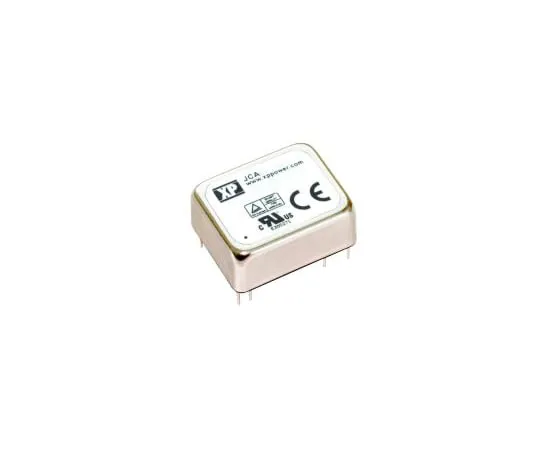

63-6863-67 Insulation DC-DC Converter Vout: ± 15 V dc 18 to 36 V dc 2 W 24 V dc JCA0224D03
Product Description
Product Model: 63-6863-67Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6863-67
Product Brand: XP Power
Features
- XP Power-JCA 2/3 Series DC-DC Converters
- The XP Power JCA 2/3 series is a reliable single/dual output 2/3W insulated DC-DC converter. 2:1 input range, in a 1.0 ” x 0.8 ” metal package with industry standard pin alignment. These compact DC-DC converters have a wide operating temperature range of -40 to +100 °C and are UL and TUV certified.
- 2/3 W Insulated DC-DC Converter Single Output and Dual Output 2:1 Input Range Compact 1.0 x 0.8 inch Metal Package -40 → +100 °C Wide Operating Temperature Range UL and TUV Certified
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 2W
- Output current: ± 70 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 73%
- Package: DIP 24
- Road regulation: ± 1%
- Maximum temperature: + 100 degrees C
- Depth: 10 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -8678
