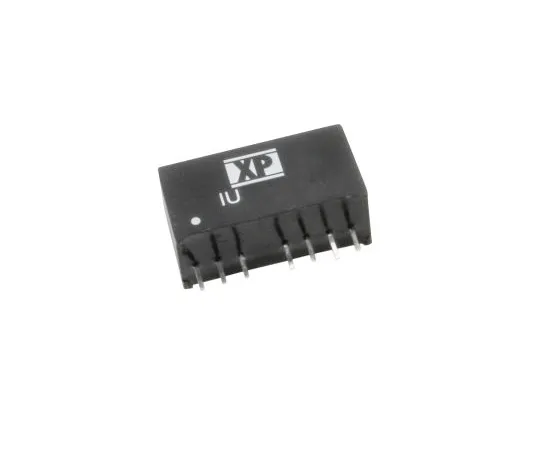

63-6863-14 Insulation DC-DC Converter Vout: 15 V dc 18 to 36 V dc 2 W 24 V dc IU2415SA
Product Description
Product Model: 63-6863-14Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6863-14
Product Brand: XP Power
Features
- XP Power-IU Series DC-DC Converters
- The IU series of XP Power is a reliable and stable single/dual output 2W insulated DC-DC converter. The breakdown voltage of this series is 1000 V dc (3000 V dc option available), and DIP and SIP packages are available. These compact DC-DC converters offer a 2:1 input range, continuous short-circuit protection, and a wide operating temperature range of -40 to +85 °C, making them ideal for a variety of commercial and industrial applications.
- 2 W insulated DC-DC converter with 1000 V dc breakdown voltage and 3000 V dc option Stable single/dual output 2:1 input range Industry standard SIP or DIP package continuous short circuit protection -40 → wide operating temperature range of +85 °C
Spec
- Quantity: 1 piece
- Output Voltage: 15 V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1000 V dc
- Rating Power: 2W
- Output current: 133 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 80%
- Package: SIP8
- Road regulation: ± 1%
- Maximum temperature: + 85 degrees C
- Length: 21.85 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -8624
