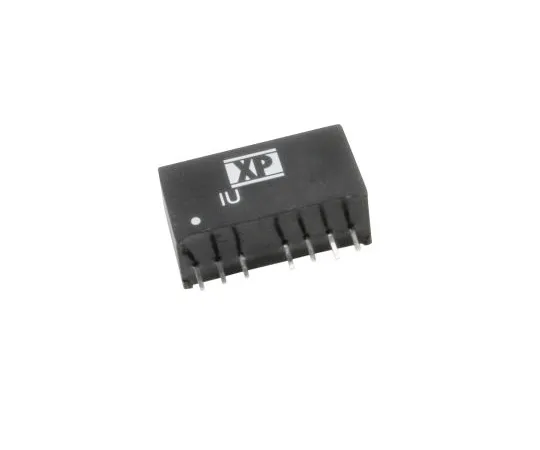

63-6863-09 Insulation DC-DC Converter Vout: 24 V dc 9 to 18 V dc 2 W 12 V dc IU1224SA
Electronic/Electrical Parts and Controll Equipments

63-6863-09 Insulation DC-DC Converter Vout: 24 V dc 9 to 18 V dc 2 W 12 V dc IU1224SA

model: 63-6863-09
brand: XP Power

Product Description

Product Model: 63-6863-09Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6863-09
Product Brand: XP Power

Features

  • XP Power-IU Series DC-DC Converters
  • The IU series of XP Power is a reliable and stable single/dual output 2W insulated DC-DC converter. The breakdown voltage of this series is 1000 V dc (3000 V dc option available), and DIP and SIP packages are available. These compact DC-DC converters offer a 2:1 input range, continuous short-circuit protection, and a wide operating temperature range of -40 to +85 °C, making them ideal for a variety of commercial and industrial applications.
  • 2 W insulated DC-DC converter with 1000 V dc breakdown voltage and 3000 V dc option Stable single/dual output 2:1 input range Industry standard SIP or DIP package continuous short circuit protection -40 → wide operating temperature range of +85 °C

Spec

  • Quantity: 1 piece
  • Output Voltage: 24 V dc
  • Input voltage range: 9 to 18 V dc
  • Input voltage nominal: 12 V dc
  • insulation Voltage: 1000 V dc
  • Rating Power: 2W
  • Output current: 83 mA
  • Mounting type: through hole
  • Number of outputs: 1
  • Efficiency: 80%
  • Package: SIP8
  • Road regulation: ± 1%
  • Maximum temperature: + 85 degrees C
  • Series: IU
  • RoHS compliance status: Compliance
  • Securities Code: 122 -8619
