Electronic/Electrical Parts and Controll Equipments
63-6862-90 Insulation DC-DC Converter Vout: 12 V dc 9 to 36 V dc 3 W 24 V dc IT2412SA
Product Description
Product Model: 63-6862-90Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6862-90
Product Brand: XP Power
Features

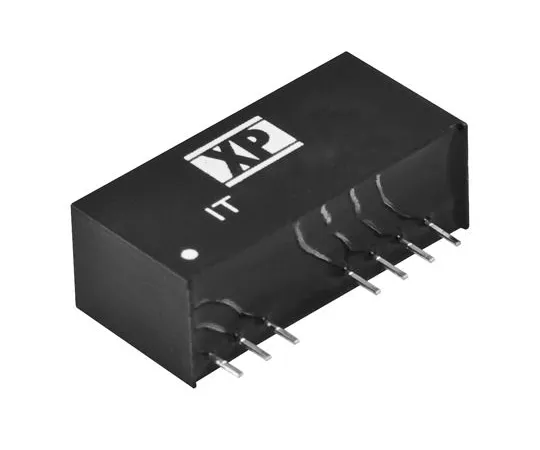

- XP Power-IT Series DC-DC Converters
- The XP Power IT series is a reliable and stable single/dual output 3W insulated DC-DC converter. This series has a breakdown voltage of 1500 V dc and is packaged in industry-standard SIP packages. These compact DC-DC converters have a 4:1 input range, remote on/off, and a wide operating temperature range of -40 to +100 °C.
- 3 W Insulated DC-DC Converter 1500 V dc Insulation Voltage Stable Single/Dual Output Industry Standard SIP Package 4:1 Wide Input Range Remote On/Off Maximum 84% Efficiency -40 → +100 °C Operating Temperature Range
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1500 V dc
- Rating Power: 3W
- Output current: 250 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 84%
- Package: SIP9
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: IT
- RoHS compliance status: Compliance
- Securities Code: 122 -8601
