63-6862-58 Insulation DC-DC Converter Vout: 12 V dc 4.5 to 5.5 V dc 3 W 5 V dc IR0512SA
Product Description
Product Model: 63-6862-58Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6862-58
Product Brand: XP Power
Features

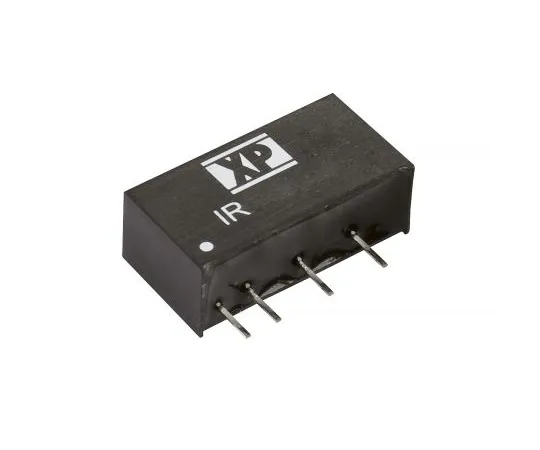

- XP Power IR Series Insulated DC-DC Converter
- The IR series of XP Power is a reliable single/dual output 3W insulated DC-DC converter. This series has a breakdown voltage of 1000 V dc (3000 V dc option available) and is packaged in an industry-standard SIP package. These compact semi-adjustable DC-DC converters operate at high efficiency of up to 90% and support a wide operating temperature range of -40 to +85 °C.
- 3 W Insulation DC-DC Converter with Insulation Voltage 1000 V dc, 3000 V dc Option Single and Dual Output Industry Standard SIP Package -40 → Wide Operating Temperature Range of +85 °C High Efficiency up to 90%
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 4.5 to 5.5 V dc
- Input voltage nominal: 5V dc
- insulation Voltage: 1 kV dc
- Rating Power: 3W
- Output current: 250 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 84%
- Package: SIP8
- Load regulation: Maximum of 6%
- Maximum temperature: + 85 degrees C
- Series: IR
- RoHS compliance status: Compliance
- Securities Code: 122 -8563
