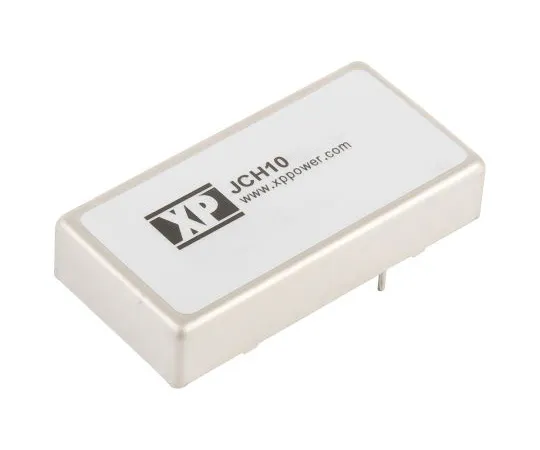

63-6860-71 Insulation DC-DC Converter Vout: ± 15 V dc 9 to 18 V dc 10 W 12 V dc JCH1012D15
Product Description
Product Model: 63-6860-71Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6860-71
Product Brand: XP Power
Features
- XP Power-JCH Series 10 W Insulated DC-DC Converter
- The JCH series of XP Power is a reliable single/dual output 10 W insulated DC-DC converter. This compact product features 1500 V dc breakdown voltage, 2:1 input range, and continuous short-circuit protection. This series is a fully convective cooling product in an industry standard package with high efficiency of up to 86%.
- 10 W Insulated DC-DC Converter Compact, Industry Standard Package 2:1 Inputs 1500 V dc Insulation Voltage Single Output and Dual 86% Output High Efficiency Substrate Mounting Operating Temperature Range: -40 → +100 °C Convective Cooling
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Output voltage adjustment range: ± 2%
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1500 V dc
- Rating Power: 10 W
- Output current: ± 333 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 85%
- Road regulation: ± 1%
- Maximum temperature: + 100 degrees C
- Series: JCH
- RoHS compliance status: Compliance
- Securities Code: 122 -8198
