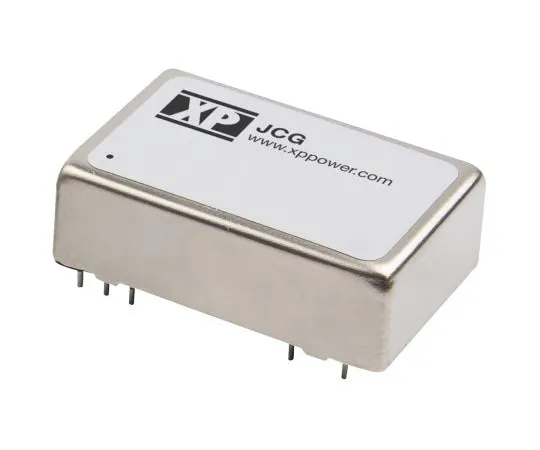

63-6860-63 Insulation DC-DC Converter Vout: 5.1 V dc 9 to 18 V dc 15 W 12 V dc JCG1512S05
Product Description
Product Model: 63-6860-63Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6860-63
Product Brand: XP Power
Features
- XP Power-JCG Series 12/15 W Insulated DC-DC Converter
- XP Power's JCG series is a reliable single/dual output 12/15 W insulated DC-DC converter. This compact product features 1600 V dc breakdown voltage, 2:1 input range, and high power density. Available in an industry-standard package, this series features remote on/off settings and high efficiency of up to 91%.
- 12/15 W Insulated DC-DC Converter Compact, Industry Standard Package 2:1 Inputs 1600 V dc Insulation Voltage Single Output and Dual Output Up to 91% Efficient Substrate Mounting Operating Temperature Range: -40 → +100 °C
Spec
- Quantity: 1 piece
- Output Voltage: 5.1 V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1.6 kV dc
- Rating Power: 15 W
- Output Current: 3A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 89%
- Package: DIL 24
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: JCG
- RoHS compliance status: Compliance
- Securities Code: 122 -8190
