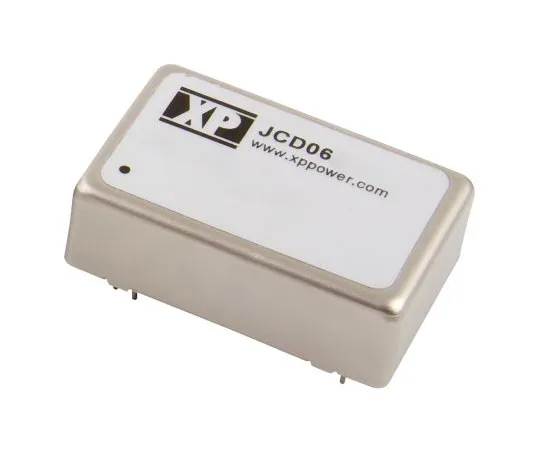

63-6860-27 Insulation DC-DC Converter Vout: 24 V dc 18 to 36 V dc 6 W 24 V dc JCD0624S24
Electronic/Electrical Parts and Controll Equipments

63-6860-27 Insulation DC-DC Converter Vout: 24 V dc 18 to 36 V dc 6 W 24 V dc JCD0624S24

model: 63-6860-27
brand: XP Power

Product Description

Product Model: 63-6860-27Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6860-27
Product Brand: XP Power

Features

  • XP Power-JCD Series 4 → 6 W Insulated DC-DC Converter
  • XP Power's JCD series is a reliable single/dual output 4 ~ 6 W insulated DC-DC converter. Features 1600 V dc breakdown voltage, continuous short-circuit protection, and high efficiency of up to 85%. It also comes in a compact, industry-standard package with a 2:1 input range.
  • 4 → 6 W, Insulated DC-DC Converter Compact, Industry Standard Package 2:1 Insulation Voltage Single Output with 1600 V dc Input Range and Dual Output 85% High Efficiency Continuous Short Circuit Protective Substrate Mounting Operating Temperature Range: -40 → +100 °C

Spec

  • Quantity: 1 piece
  • Output Voltage: 24 V dc
  • Output voltage adjustment range: ± 1%
  • Input voltage range: 18 to 36 V dc
  • Input voltage nominal: 24 V dc
  • insulation Voltage: 1.6 kV dc
  • Rating Power: 6W
  • Output current: 250 mA
  • Mounting type: through hole
  • Number of outputs: 1
  • Efficiency: 85%
  • Package: DIL 24
  • Road regulation: ± 0.5%
  • Maximum temperature: + 100 degrees C
  • Series: JCD
  • RoHS compliance status: Compliance
  • Securities Code: 122 -8149
