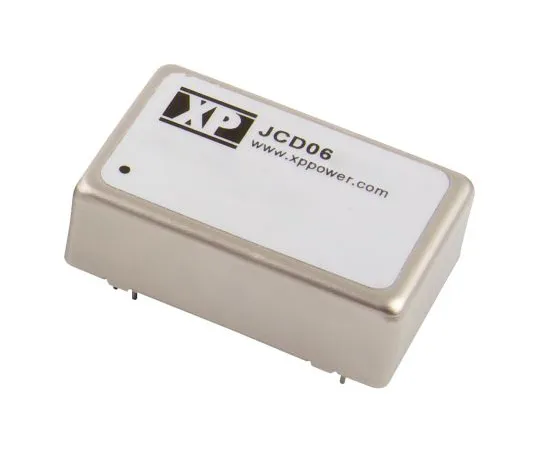

63-6860-24 Insulation DC-DC Converter Vout: 9 V dc 18 to 36 V dc 6 W 24 V dc JCD0624S09
Product Description
Product Model: 63-6860-24Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6860-24
Product Brand: XP Power
Features
- XP Power-JCD Series 4 → 6 W Insulated DC-DC Converter
- XP Power's JCD series is a reliable single/dual output 4 ~ 6 W insulated DC-DC converter. Features 1600 V dc breakdown voltage, continuous short-circuit protection, and high efficiency of up to 85%. It also comes in a compact, industry-standard package with a 2:1 input range.
- 4 → 6 W, Insulated DC-DC Converter Compact, Industry Standard Package 2:1 Insulation Voltage Single Output with 1600 V dc Input Range and Dual Output 85% High Efficiency Continuous Short Circuit Protective Substrate Mounting Operating Temperature Range: -40 → +100 °C
Spec
- Quantity: 1 piece
- Output Voltage: 9V dc
- Output voltage adjustment range: ± 1%
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.6 kV dc
- Rating Power: 6W
- Output current: 666 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 83%
- Package: DIL 24
- Minimum temperature: -40 degrees C
- Maximum temperature: + 100 degrees C
- Series: JCD
- RoHS compliance status: Compliance
- Securities Code: 122 -8146
