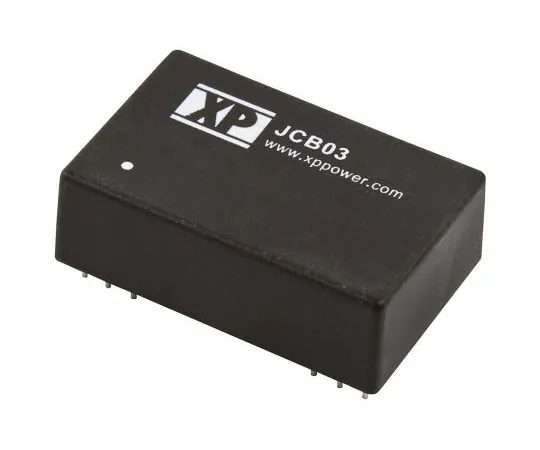

63-6859-51 Insulation DC-DC Converter Vout: ± 9 V dc 18 to 36 V dc 3 W 24 V dc JCB0324D09
Electronic/Electrical Parts and Controll Equipments

63-6859-51 Insulation DC-DC Converter Vout: ± 9 V dc 18 to 36 V dc 3 W 24 V dc JCB0324D09

model: 63-6859-51
brand: XP Power

Product Description

Product Model: 63-6859-51Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6859-51
Product Brand: XP Power

Features

  • XP Power-JCB Series 3W Insulated DC-DC Converter
  • XP Power's JCB series is a reliable single/dual output 3W insulated DC-DC converter. The breakdown voltage is 1500 V dc, and 3000 V dc products are also available. This series has a 2:1 input range and is up to 82% efficient. Available in a compact, industry-standard package.
  • 3 W Insulation DC-DC Converter Compact, Industry Standard Package 2:1 Insulation Voltage Option of 1500 V dc Insulation Voltage 3000 V dc High Efficiency Operating Temperature Range of Up to 82% Single Output and Dual Output: -40 → +100 °C Substrate Mounting Optional Metal Case

Spec

  • Quantity: 1 piece
  • Output Voltage: ± 9V dc
  • Input voltage range: 18 to 36 V dc
  • Input voltage nominal: 24 V dc
  • insulation Voltage: 1500 V dc
  • Rating Power: 3W
  • Output current: ± 167 mA
  • Mounting type: through hole
  • Number of outputs: 2
  • Efficiency: 79%
  • Package: DIP 24
  • Road regulation: ± 0.5%
  • Maximum temperature: + 100 degrees C
  • Series: JCB
  • RoHS compliance status: Compliance
  • Securities Code: 122 -8073
