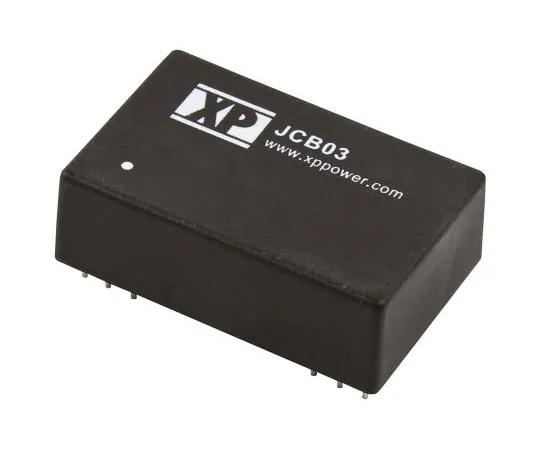

63-6859-45 Insulation DC-DC Converter Vout: ± 24 V dc 9 to 18 V dc 3 W 12 V dc JCB0312D24
Product Description
Product Model: 63-6859-45Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6859-45
Product Brand: XP Power
Features
- XP Power-JCB Series 3W Insulated DC-DC Converter
- XP Power's JCB series is a reliable single/dual output 3W insulated DC-DC converter. The breakdown voltage is 1500 V dc, and 3000 V dc products are also available. This series has a 2:1 input range and is up to 82% efficient. Available in a compact, industry-standard package.
- 3 W Insulation DC-DC Converter Compact, Industry Standard Package 2:1 Insulation Voltage Option of 1500 V dc Insulation Voltage 3000 V dc High Efficiency Operating Temperature Range of Up to 82% Single Output and Dual Output: -40 → +100 °C Substrate Mounting Optional Metal Case
Spec
- Quantity: 1 piece
- Output Voltage: ± 24 V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1500 V dc
- Rating Power: 3W
- Output current: ± 63 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 78%
- Package: DIP 24
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: JCB
- RoHS compliance status: Compliance
- Securities Code: 122 -8067
