Electronic/Electrical Parts and Controll Equipments

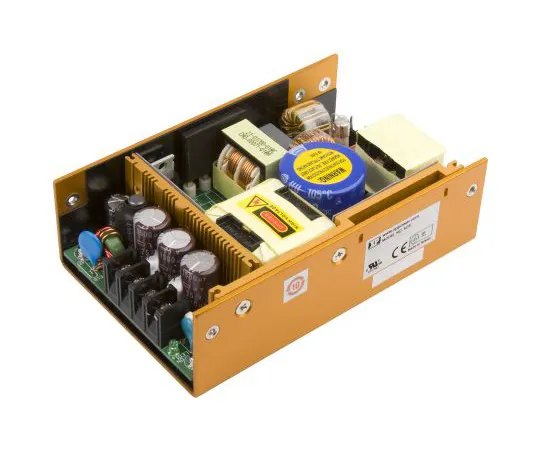

63-6858-82 AC/DC Converter 5/12/24 V dc 3.5 A 15 A 800 mA 120 W with case SDS120PT15B
Product Description
Product Model: 63-6858-82Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6858-82
Product Brand: XP Power
Features
- XP Power-SDS Series AC-DC Power Supply
- The SDS series of XP Power is an excellent 120 to 180 W power supply with single and multiple outputs. The reliable compact power supply has an output voltage of 9 to 48 V and is ho***d in an industry-standard 3 x 5 inch enclosure. Available in open frame, U-channel, and cover, it has a high efficiency of up to 90%.
- 120 → 180 W, Open frame power supply single/multiple output Operating temperature: 0 → +70 °C Convective cooling enclosure Footprint: 5 x 3 inches Output voltage: 3.3 → 48 V High efficiency up to 90% Open frame, U channel, covered items Low temperature option available
Spec
- Quantity: 1 piece
- Output Voltage: 5/12/24 V dc
- Output Current: 3.5 A, 15 A, 800 mA
- Rating Power: 120 W
- Number of outputs: 3
- Input Voltage: 120 to 370 V dc, 90 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: With Cover
- Length: 127 mm
- Width: 81.4 mm
- Depth: 39.2 mm
- Weight: 450 g
- Efficiency: 80%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7904
