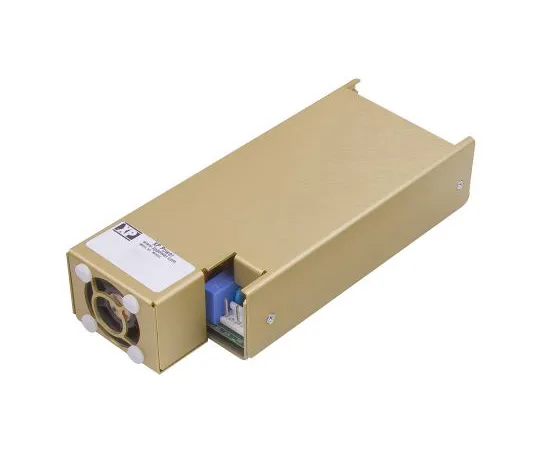

63-6858-74 AC/DC Converter 24 V dc 14.5 A 361 W U bracket MFA350PS24
Electronic/Electrical Parts and Controll Equipments

63-6858-74 AC/DC Converter 24 V dc 14.5 A 361 W U bracket MFA350PS24

model: 63-6858-74
brand: XP Power

Product Description

Product Model: 63-6858-74Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6858-74
Product Brand: XP Power

Features

  • XP Power-MFA Series AC-DC Power
  • The MFA series from XP Power can be ***d with a wide power range of 350 to 420 W. This reliable, enclosed power supply is available in U-channel, cover fan, and hot-swap formats, all of which operate at 86% (standard) efficiency. This series can be ***d with a power density of up to 12.8 W per cubic inch and an operating temperature range of -10 → +70 °C.
  • 350 to 420 W, Sealed Power U-Channel, Cover Fan, Hot-Swap High-Efficiency Power Fail, DC OK, Active Current Shared Standby Output: 5 V Fan Power Output: 12 V Power Density: Up to 12.8 W per cubic inch Operating Temperature: -10 to +70 °C

Spec

  • Quantity: 1 piece
  • Output Voltage: 24 V dc
  • Output Current: 14.5 A
  • Rating Power: 361 W
  • Number of outputs: 1
  • Input Voltage: 85 to 264 V ac
  • Mounting type: U-shaped bracket
  • Package Type: U Bracket
  • Length: 172.7 mm
  • Width: 81.3 mm
  • Depth: 38.1 mm
  • Weight: 612 g
  • Efficiency: 86%
  • Maximum temperature: + 70 degrees C
  • Minimum temperature: -10 degrees C
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7895
