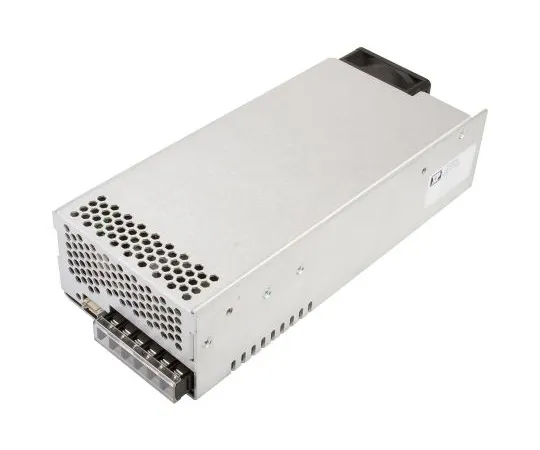

63-6858-73 AC/DC Converter 12 V dc 50 A 607 W with case HHP650PS12
Product Description
Product Model: 63-6858-73Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6858-73
Product Brand: XP Power
Features
- XP Power-HHP650 Series AC-DC Power
- The XP Power HHP650 Series can be ***d with a wide power range of 600 to 780 W. This reliable enclosed power supply has a compact fan cooling package and operates at 85% (standard) efficiency. The input of this product is 85 → 305 V ac and the operating temperature is -40 → +70 °C.
- 600 → 780 W, Sealed Power Supply Compact, Rugged Mechanical Fan Cooling Package Operating Temperature: -40 → +70 °C High Efficiency Input: 85 → 305 V ac MIL-STD-810 F Shock and Vibration Resistance Surge Rating of 6 kV - IEEEStdC62.41
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Output Current: 50 A
- Rating Power: 607 W
- Number of outputs: 1
- Input Voltage: 85 to 305 V ac
- Mounting Type: Chassis Mount
- Package Type: With Cover
- Length: 253.8 mm
- Width: 106.8 mm
- Depth: 63.5 mm
- Weight: 1.3 kg
- Efficiency: 85%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7888
