Electronic/Electrical Parts and Controll Equipments

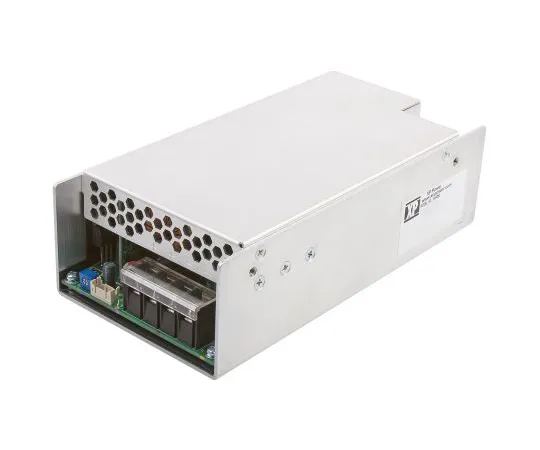

63-6858-52 AC/DC Converter 36 V dc 9.7 A 350 W open frame SHP350PS36
Product Description
Product Model: 63-6858-52Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6858-52
Product Brand: XP Power
Features
- XP Power-SHP Series AC-DC Power Supply
- The MHP series of XP Power is an excellent 350/650/1000/1200 W power supply. These reliable enclosed power supplies have variable speed fans for noise reduction and are 85% efficient. It also features compact and durable construction, AC OK, remote on/off, and active current sharing.
- 350-1200 W, Sealed Power Supply 5 V Standby Compact, Sturdy Structure AC OK with variable speed fan screw-on terminal for noise reduction, Remote On/Off and Active Current Shared Operating Temperature Range: -40 → +70 °C
Spec
- Quantity: 1 piece
- Output Voltage: 36 V dc
- Output Current: 9.7 A
- Rating Power: 350 W
- Number of outputs: 1
- Input Voltage: 85 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 179.3 mm
- Width: 91.44 mm
- Depth: 53.34 mm
- Weight: 788 g
- Efficiency: 85%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -20 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7859
