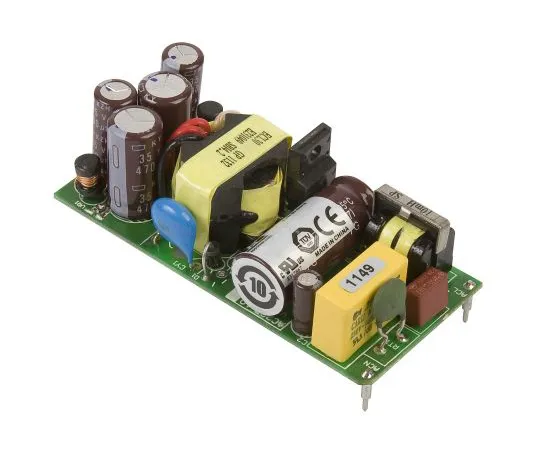

63-6858-15 AC/DC Converter 5/± 15 V dc 3 A 500 mA 30 W Open Frame ECL30UT03-P
Electronic/Electrical Parts and Controll Equipments

63-6858-15 AC/DC Converter 5/± 15 V dc 3 A 500 mA 30 W Open Frame ECL30UT03-P

model: 63-6858-15
brand: XP Power

Product Description

Product Model: 63-6858-15Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6858-15
Product Brand: XP Power

Features

  • XP Power-ECL Series 5-30 W AC-DC Power Supply
  • The ECL series from XP Power is a 5 ~ 30 W AC-DC power supply with excellent single, dual and triple output. These ultra-compact power supplies are available in open-board mount, open-chassis mount, closed-board mount, and closed-chassis mount versions. These products offer less than 0.3 W of no-load input power, peak load handling, and up to 84% efficiency.
  • 5 to 30 W AC-DC Power Supply Single, Dual and Triple Output Sealed Substrate Mounted Version and Chassis Mounted Version Open Substrate Mounted Version and Chassis Mounted Version Ultra Small Loadless Input Power:; High efficiency operating temperature of up to 84% for 0.3 W peak load: -20 → +70 °C

Spec

  • Quantity: 1 piece
  • Output Voltage: 5/± 15 V dc
  • Output Current: 3 A, 500 mA
  • Rating Power: 30 W
  • Number of outputs: 3
  • Input Voltage: 120 to 370 V dc, 85 to 264 V ac
  • Mounting Type: PCB Mount
  • Package Type: Open Frame
  • Length: 75.2 mm
  • Width: 34.6 mm
  • Depth: 22.3 mm
  • Weight: 60 g
  • Efficiency: 81%
  • Maximum temperature: + 70 degrees C
  • Minimum temperature: -20 degrees C
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7801
