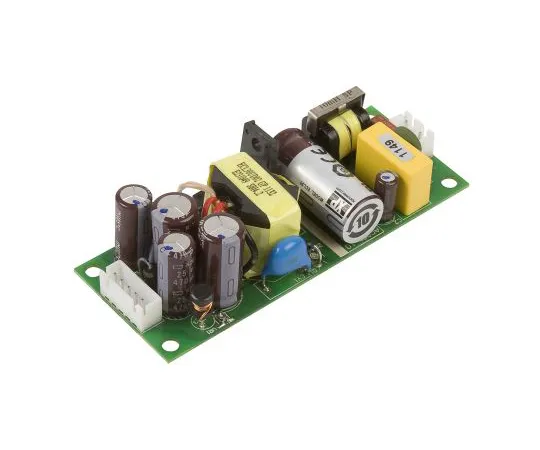

63-6858-07 AC/DC Converter ± 15 V dc 1 A 30 W Open Frame ECL30UD02-T
Product Description
Product Model: 63-6858-07Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6858-07
Product Brand: XP Power
Features
- XP Power-ECL Series 5-30 W AC-DC Power Supply
- The ECL series from XP Power is a 5 ~ 30 W AC-DC power supply with excellent single, dual and triple output. These ultra-compact power supplies are available in open-board mount, open-chassis mount, closed-board mount, and closed-chassis mount versions. These products offer less than 0.3 W of no-load input power, peak load handling, and up to 84% efficiency.
- 5 to 30 W AC-DC Power Supply Single, Dual and Triple Output Sealed Substrate Mounted Version and Chassis Mounted Version Open Substrate Mounted Version and Chassis Mounted Version Ultra Small Loadless Input Power:; High efficiency operating temperature of up to 84% for 0.3 W peak load: -20 → +70 °C
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Output Current: 1A
- Rating Power: 30 W
- Number of outputs: 2
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 87.9 mm
- Width: 34.6 mm
- Depth: 22.4 mm
- Weight: 60 g
- Efficiency: 83%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -20 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7791
