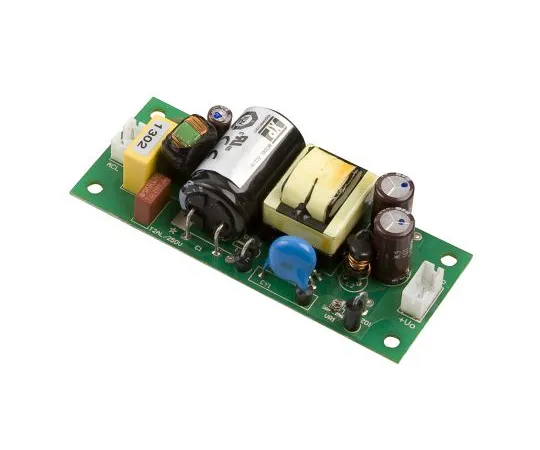

63-6857-90 AC/DC Converter 48 V dc 320 mA 15 W open frame ECL15US48-T
Electronic/Electrical Parts and Controll Equipments

63-6857-90 AC/DC Converter 48 V dc 320 mA 15 W open frame ECL15US48-T

model: 63-6857-90
brand: XP Power

Product Description

Product Model: 63-6857-90Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6857-90
Product Brand: XP Power

Features

  • XP Power-ECL Series 5-30 W AC-DC Power Supply
  • The ECL series from XP Power is a 5 ~ 30 W AC-DC power supply with excellent single, dual and triple output. These ultra-compact power supplies are available in open-board mount, open-chassis mount, closed-board mount, and closed-chassis mount versions. These products offer less than 0.3 W of no-load input power, peak load handling, and up to 84% efficiency.
  • 5 to 30 W AC-DC Power Supply Single, Dual and Triple Output Sealed Substrate Mounted Version and Chassis Mounted Version Open Substrate Mounted Version and Chassis Mounted Version Ultra Small Loadless Input Power:; High efficiency operating temperature of up to 84% for 0.3 W peak load: -20 → +70 °C

Spec

  • Quantity: 1 piece
  • Output Voltage: 48 V dc
  • Output current: 320 mA
  • Rating Power: 15 W
  • Number of outputs: 1
  • Input Voltage: 120 to 370 V dc, 85 to 264 V ac
  • Mounting Type: Chassis Mount
  • Package Type: Open Frame
  • Length: 78.7 mm
  • Width: 31.8 mm
  • Depth: 20 mm
  • Weight: 35 g
  • Efficiency: 82%
  • Maximum temperature: + 70 degrees C
  • Minimum temperature: -20 degrees C
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7765
