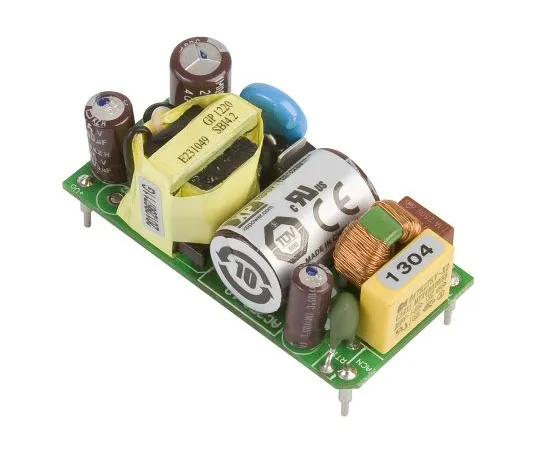

63-6857-49 AC/DC Converter 9 V dc 1.1 A 10 W open frame ECL10US09-P
Product Description
Product Model: 63-6857-49Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6857-49
Product Brand: XP Power
Features
- XP Power-ECL Series 5-30 W AC-DC Power Supply
- The ECL series from XP Power is a 5 ~ 30 W AC-DC power supply with excellent single, dual and triple output. These ultra-compact power supplies are available in open-board mount, open-chassis mount, closed-board mount, and closed-chassis mount versions. These products offer less than 0.3 W of no-load input power, peak load handling, and up to 84% efficiency.
- 5 to 30 W AC-DC Power Supply Single, Dual and Triple Output Sealed Substrate Mounted Version and Chassis Mounted Version Open Substrate Mounted Version and Chassis Mounted Version Ultra Small Loadless Input Power:; High efficiency operating temperature of up to 84% for 0.3 W peak load: -20 → +70 °C
Spec
- Quantity: 1 piece
- Output Voltage: 9V dc
- Output Current: 1.1 A
- Rating Power: 10 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: Open Frame
- Length: 49.5 mm
- Width: 25.4 mm
- Depth: 18.5 mm
- Weight: 26 g
- Efficiency: 78%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -20 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7715
