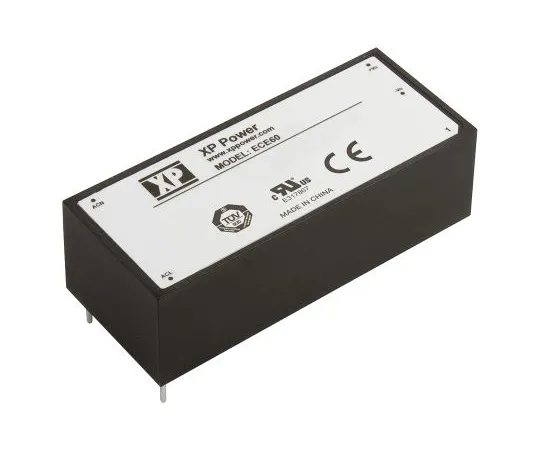

63-6857-26 AC/DC Converter 36 V dc 1.67 A 60 W sealed ECE60US36
Product Description
Product Model: 63-6857-26Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6857-26
Product Brand: XP Power
Features
- XP Power-ECE60 Series AC-DC Power Supply
- The ECE60 series from XP Power is an excellent 60 W board mount/chassis mount power supply. These highly reliable sealed power supplies feature an ultra-compact structure with a single output voltage of 3.3 ~ 48 V. It also boasts less than 0.3 W of no-load input power, peak load handling, and high efficiency of up to 89%.
- 60 W AC-DC Power Supply 3.3 → 48 V Single Output Sealed Substrate Mounted Version and Chassis Mounted Version Ultra Small Load Free Input Power:; High efficiency green power module operating temperature range of up to 89% for 0.3 W peak load: -40 → +70 °C
Spec
- Quantity: 1 piece
- Output Voltage: 36 V dc
- Output Current: 1.67 A
- Rating Power: 60 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: Sealed
- Length: 91.4 mm
- Width: 38.1 mm
- Depth: 28 mm
- Weight: 191 g
- Efficiency: 88%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7692
