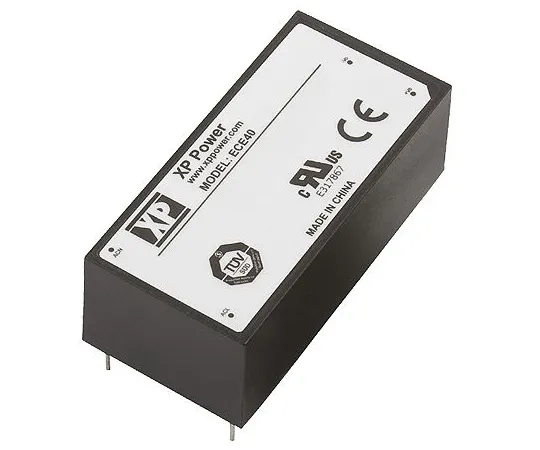

63-6857-09 AC/DC Converter 15 V dc 2.67 A 40 W sealed ECE40US15
Product Description
Product Model: 63-6857-09Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6857-09
Product Brand: XP Power
Features
- XP Power-ECE Series 20/40 W AC-DC Power Supply
- The ECE series from XP Power is an excellent 20 ~ 40 W board mount/chassis mount power supply. These highly reliable sealed power supplies feature an ultra-compact structure with a single output voltage of 3.3 ~ 48 V. It also boasts less than 0.3 W of no-load input power, peak load handling, and high efficiency of up to 86%.
- 20 to 40 W AC-DC power supply 3.3 to 48 V single output sealed board-mounted version and chassis mounted version ultra-small, no-load input power:; High efficiency operating temperature of up to 86% for 0.3 W peak load: -25 → +70 °C
Spec
- Quantity: 1 piece
- Output Voltage: 15 V dc
- Output Current: 2.67 A
- Rating Power: 40 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: Sealed
- Length: 78.7 mm
- Width: 38.1 mm
- Depth: 27.9 mm
- Weight: 150 g
- Efficiency: 84%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -25 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7675
