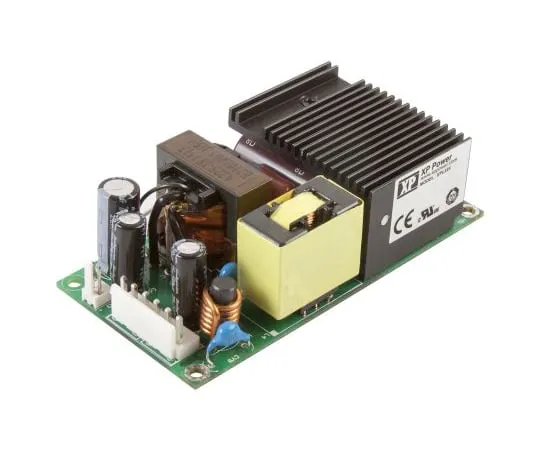

63-6856-69 AC/DC Converter 12 V dc 18.75 A 225 W Open Frame Y EPL225PS12
Product Description
Product Model: 63-6856-69Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6856-69
Product Brand: XP Power
Features
- XP Power-EPL225 Series Switch Mode Power Supply
- XP Power's EPL225 Series switch mode power supply is designed to maximize efficiency under load while minimizing no-load power consumption. This design allows for optimal heat dissipation, reducing operating costs and maintaining an installation environment that complies with the latest environmental goals and regulations. The XP Power EPL225 Series is small but versatile enough to be ***d in a wide range of applications, including ITE and industrial applications.
- Features and Benefits 150 W (Convective Cooling)/225 W (Forced Cooling) (Rated). ITE certification. High power density 12 V output fan. Maximum efficiency 95%. 2 x 4 inch footprint, 1.26 inch low profile.
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Output Current: 18.75 A
- Rating Power: 225 W
- Number of outputs: 1
- Input Voltage: 85 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 101.6 mm
- Width: 50.8 mm
- Depth: 29.6 mm
- Weight: 195 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7634
