63-6856-63 AC/DC Converter 24 V dc 1.25 A 30 W Open Frame Y EML30US24-P
Electronic/Electrical Parts and Controll Equipments

63-6856-63 AC/DC Converter 24 V dc 1.25 A 30 W Open Frame Y EML30US24-P

model: 63-6856-63
brand: XP Power

Product Description

Product Model: 63-6856-63Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6856-63
Product Brand: XP Power

Features

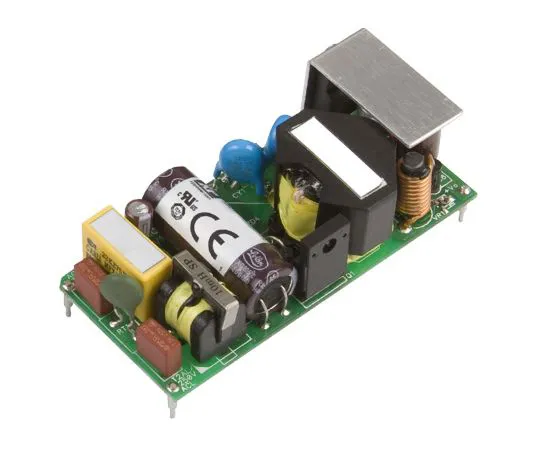

  • XP Power-EML30 Series Switch Mode Power Supply
  • The XP Power EML30 Series is an open-frame, encapsulated, AC-DC single-output power supply designed for medical applications. The EML30 Series is certified in a variety of safety standards around the world, including Class B medical safety and compliance. With this design, the EML30 series offers a high degree of flexibility, allowing engineers to easily integrate this product into modern medical devices.
  • Features and Benefits: Certified for medical ***. Class II grade. Supports mounting options such as boards, open frames, and chassis. Sealed board/chassis mounting. The available output range is 3.3 to 48 V. Supports peak load.

Spec

  • Quantity: 1 piece
  • Output Voltage: 24 V dc
  • Output Current: 1.25 A
  • Rating Power: 30 W
  • Number of outputs: 1
  • Input Voltage: 120 to 370 V dc, 85 to 264 V ac
  • Mounting Type: PCB Mount
  • Package Type: Open Frame
  • Length: 75.2 mm
  • Width: 34.6 mm
  • Depth: 22.3 mm
  • Weight: 60 g
  • Maximum temperature: + 70 degrees C
  • Medical standards certification: Yes
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7628
