63-6856-51 AC/DC Converter 48 V dc 320 mA 15 W open frame Y EML15US48-P
Product Description
Product Model: 63-6856-51Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6856-51
Product Brand: XP Power
Features

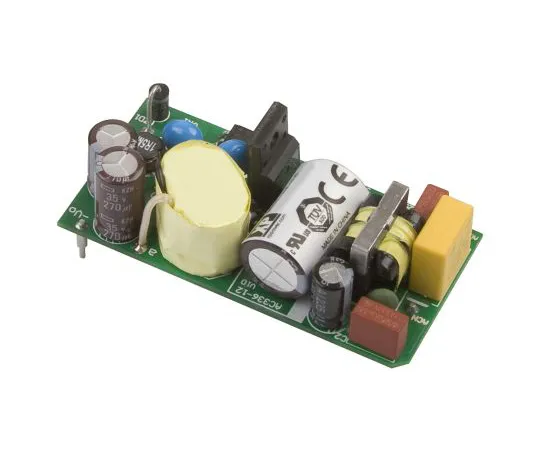

- XP Power-EML15 Series Switch Mode Power Supply
- The XP Power EML15 Series is an open-frame, enclosed AC-DC single-output power supply designed for medical applications. The EML Series is certified in a variety of safety standards around the world, including Class B medical safety and compliance. The EML15 series has a flexible design that allows engineers to easily integrate into modern medical devices.
- Features and Benefits: Certified for medical ***. Class II grade. Supports mounting options such as boards, open frames, and chassis. Sealed board/chassis mounting. The available output range is 3.3 to 48 V.
Spec
- Quantity: 1 piece
- Output Voltage: 48 V dc
- Output current: 320 mA
- Rating Power: 15 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: Open Frame
- Length: 62 mm
- Width: 30.7 mm
- Depth: 20 mm
- Weight: 35 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7616
