63-6856-19 AC/DC Converter 12 V dc 10.83 A 130 W Open Frame Y ECP130PS12
Product Description
Product Model: 63-6856-19Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6856-19
Product Brand: XP Power
Features

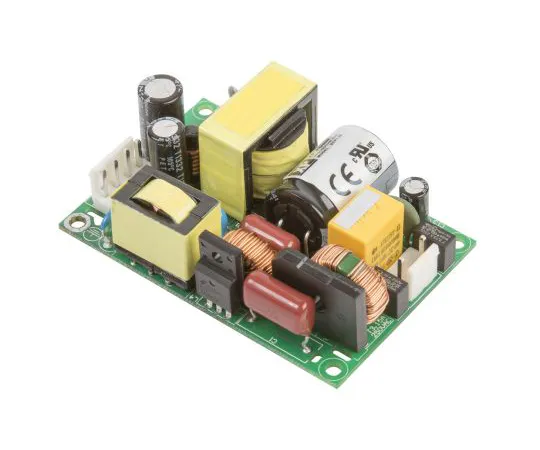

- XP Power-ECP130 Series Switch Mode Power Supply
- With 130 W power, the XP Power ECP130 Series is a low-cost, chassis-mounted power solution for a wide variety of applications. The ECP130 series; It provides 12 to 48 V output voltage with a very low input power of 0.3 W. This series is designed to comply with the latest environmental laws and regulations. Beca*** of its low profile, this series offers a wide range of small, reliable power supplies that are Medical/ITE certified.
- Features and benefits: 100 W (convective cooling)/130 W (forced cooling) (rated). Medical/ITE certification. 0.5 W (input power at no load). Maximum efficiency 95%. 2 x 3 inch footprint, 1.1 inch low profile.
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Output Current: 10.83 A
- Rating Power: 130 W
- Number of outputs: 1
- Input Voltage: 85 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 76.2 mm
- Width: 50.8 mm
- Depth: 24.1 mm
- Weight: 195 g
- Maximum temperature: + 80 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7584
