63-6855-85 Insulation DC-DC Converter Vout: 12 V dc 9 to 36 V dc 15 W 24 V dc JTK1524S12
Product Description
Product Model: 63-6855-85Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6855-85
Product Brand: XP Power
Features

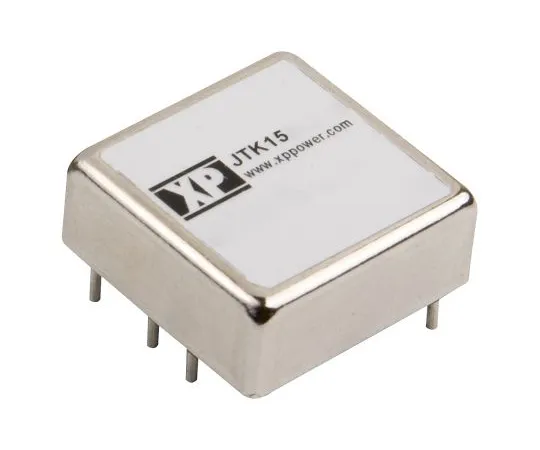

- XP Power-JTK15 Series Insulated DC-DC Converter
- XP Power's JTK15 series is a reliable single/dual output 15 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 89%. It is compact, has a wide input range of 4:1, very high power density, and an operating temperature of -40 to +100 °C.
- 15 W Insulated DC-DC Converter 1600 V dc Insulation Very High Power Density Single and Dual Output 4:1 Wide Input Range Operating Temperature Range: -40 → +100 °C High Efficiency Industry Standard Package Substrate Mounting Up to 89%
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1600 V dc
- Rating Power: 15 W
- Output Current: 1.3 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 88%
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Depth: 9.9 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7549
